Article No. 60900
DACHFIX STEEL 115
Longitudinal grating, bar distance 12 mm, galvanised, 1.0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

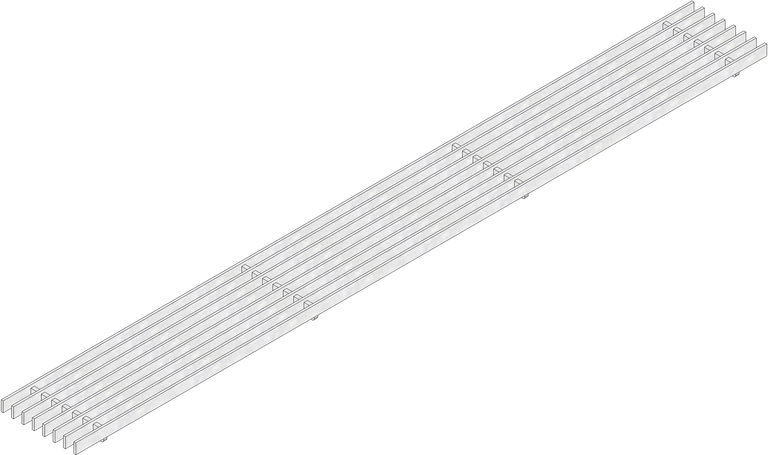

Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
60900
Length
1000 mm
Width
108 mm
Height
20 mm
Inlay depth
20 mm
Weight
3.13 kg
Material
hot-dip galvanised steel
Intake cross-section
822.0 cm²/m
Nominal size
115
Inlet opening
12 x 0 mm
Fixing type
Loose blatant
Material grating
hot-dip galvanised steel
Sales text
Longitudinal grating bar distance 12 mm, galvanised, cl. A 15, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 1 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115 - Longitudinal grating, bar distance 12 mm, made of galvanised steel, load class A 15, installation length 1000 mm, item no. 60900
Packaging unit
306
