Article No. 63010
DACHFIX STEEL 115
Longitudinal grating, bar distance 10 mm, silver, 0.5 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

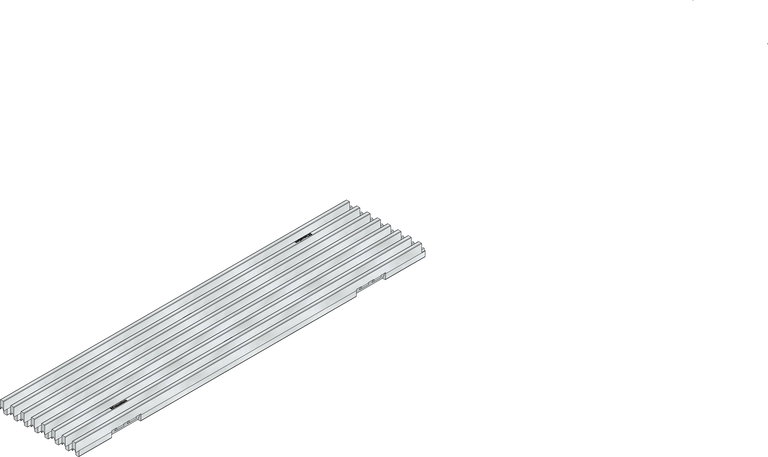

Top view
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
63010
Length
500 mm
Width
108 mm
Height
29 mm
Inlay depth
20 mm
Weight
0.37 kg
Material
recycled, modified Polypropylene
Intake cross-section
650.0 cm²/m
Nominal size
115
Inlet opening
10 x 0 mm
Material grating
recycled, modified Polypropylene
Sales text
Longitudinal grating bar distance 10 mm, silver, pedestrian and wheelchair-accessible, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115/TOP X, 0.5 m
Product description
DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115/TOP X - Longitudinal grating, bar distance 10 mm, made of recycled polypropylene, silver, pedestrian and wheelchair-accessible, installation length 500 mm, item no. 63010
Packaging unit
972
