Article No. 69026
DACHFIX STEEL 115
Slotted grating, SW 80/9 mm, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

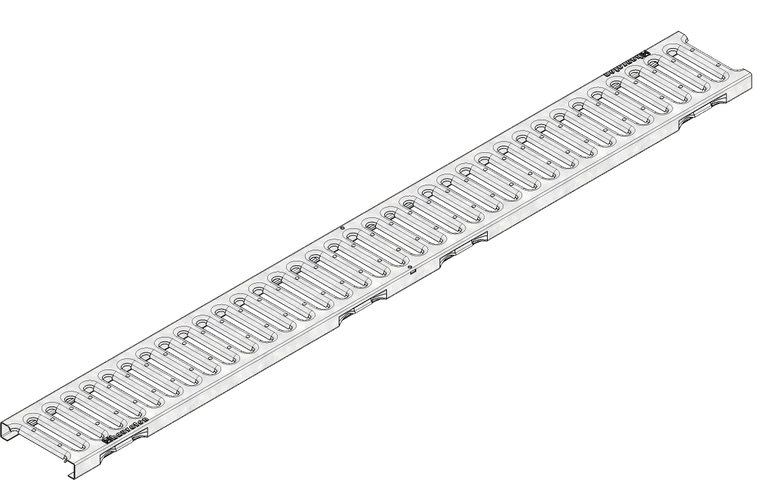

Product image
Top view
Data Sheet
Technical information and metrics
Article No.
69026
Length
1000 mm
Width
108 mm
Height
-
Inlay depth
20 mm
Weight
1.20 kg
Material
strip galvanized steel
Intake cross-section
256.0 cm²/m
Nominal size
115
Inlet opening
80 x 9 mm
Fixing type
Locking handle
Material grating
strip galvanized steel
Sales text
Slotted grating SW 80/9 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 115, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 115 -Slotted grating SW 80/9 mm made of galvanised steel, load class A 15, installation length 1000 mm, item no. 69026
Packaging unit
300
