Article No. 65225
DACHFIX STEEL 155, height 75 mm
Type 75, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

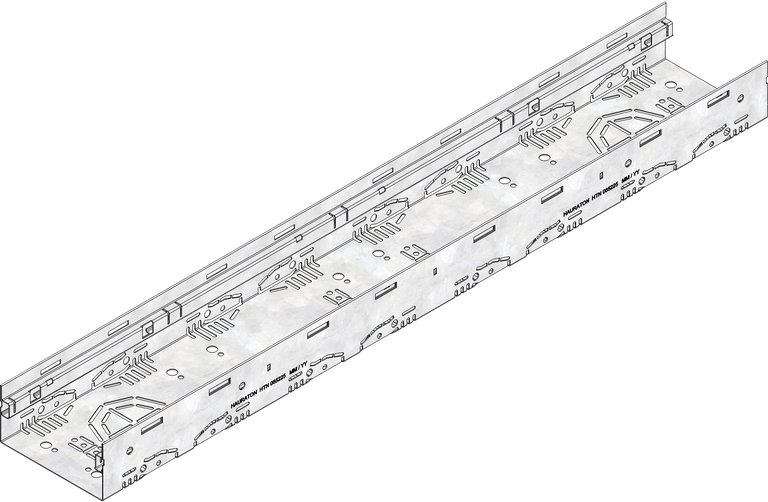

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65225
Length
1000 mm
Width
155 mm
Height
75 mm
Weight
2.95 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
83 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL Channel 155 Type 75 galvanised, height 75 mm, L 1,0 m
Product description
DACHFIX STEEL 155 - Channel type 75, made of corrosion-resistant galvanised steel, walkable and wheelchair-accessible respectively, grating support tilted inwards, with perforation on both sides as well as in channel base integrated perforation for on-site performing connection for pipe spigots of DN/OD 75 or DN/OD 110, L/W/H 1000x155x75 mm, Item No. 65225
