Article No. 69002
DACHFIX STEEL 155
Mesh grating MS 30/10 mm, galvanised, 1.0 m
Available from stock

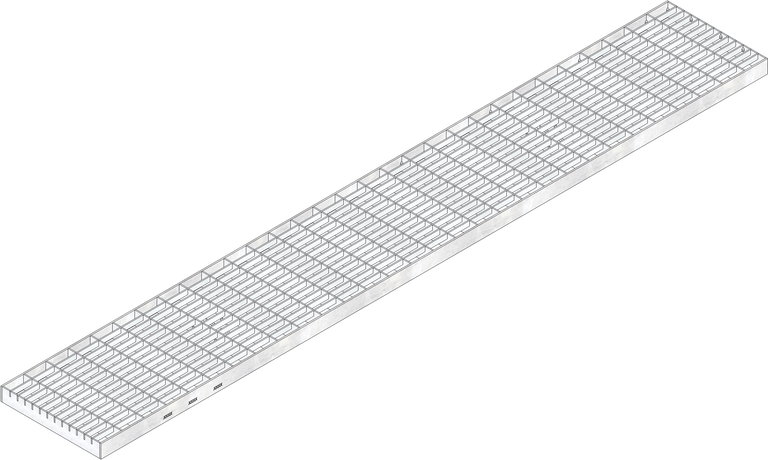

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
69002
Length
1000 mm
Width
150 mm
Height
20 mm
Inlay depth
20 mm
Weight
2.94 kg
Material
hot-dip galvanised steel
Intake cross-section
1099.0 cm²/m
Nominal size
155
Inlet opening
30 x 10 mm
Fixing type
Locking handle
Material grating
hot-dip galvanised steel
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. A 15, 2-fold screwable, DACHFIX STEEL/STEELFIX REGULAR 155, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -Mesh grating MS 30/10 mm made of galvanised steel, load class A 15, 2-fold bolting possibility, installation length 1000 mm, item no. 69002
Packaging unit
252
