Article No. 65001

DACHFIX STEEL Cross-intersection

open, galvanised, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

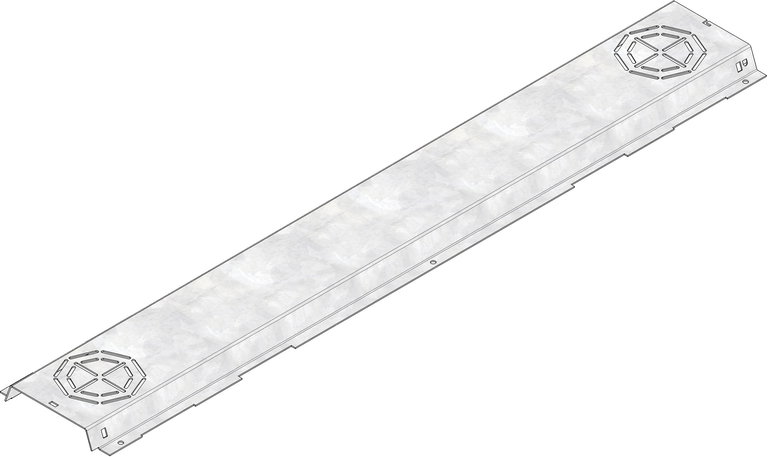

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
65001
Length
1000 mm
Width
165 mm
Height
29 mm
Weight
2.23 kg
Material
strip galvanized steel
Nominal size
115, 135, 155, 205, 255
Sales text
Cross-intersection channel, galvanised, trapezoidal conical shape/hat profile, open downwards, DACHFIX STEEL/STEELFIX REGULAR, 1 m
Product description
DACHFIX STEEL/STEELFIX REGULAR - Cross-intersection channel, open downwards, trapezoidal conical shape/hat profile, made of galvanised steel, pluggable and fixable, with connection possibility DN/OD 110 as inlet, LxWxH 1000x165x29 mm, item no. 65001
Packaging unit
198

Tender Texts

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible
