Article No. 97498
DRAINFIX CLEAN FSU 400, class F 900
Ductile iron grating SW 3 x 120/20 mm, black, with plastic caps, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

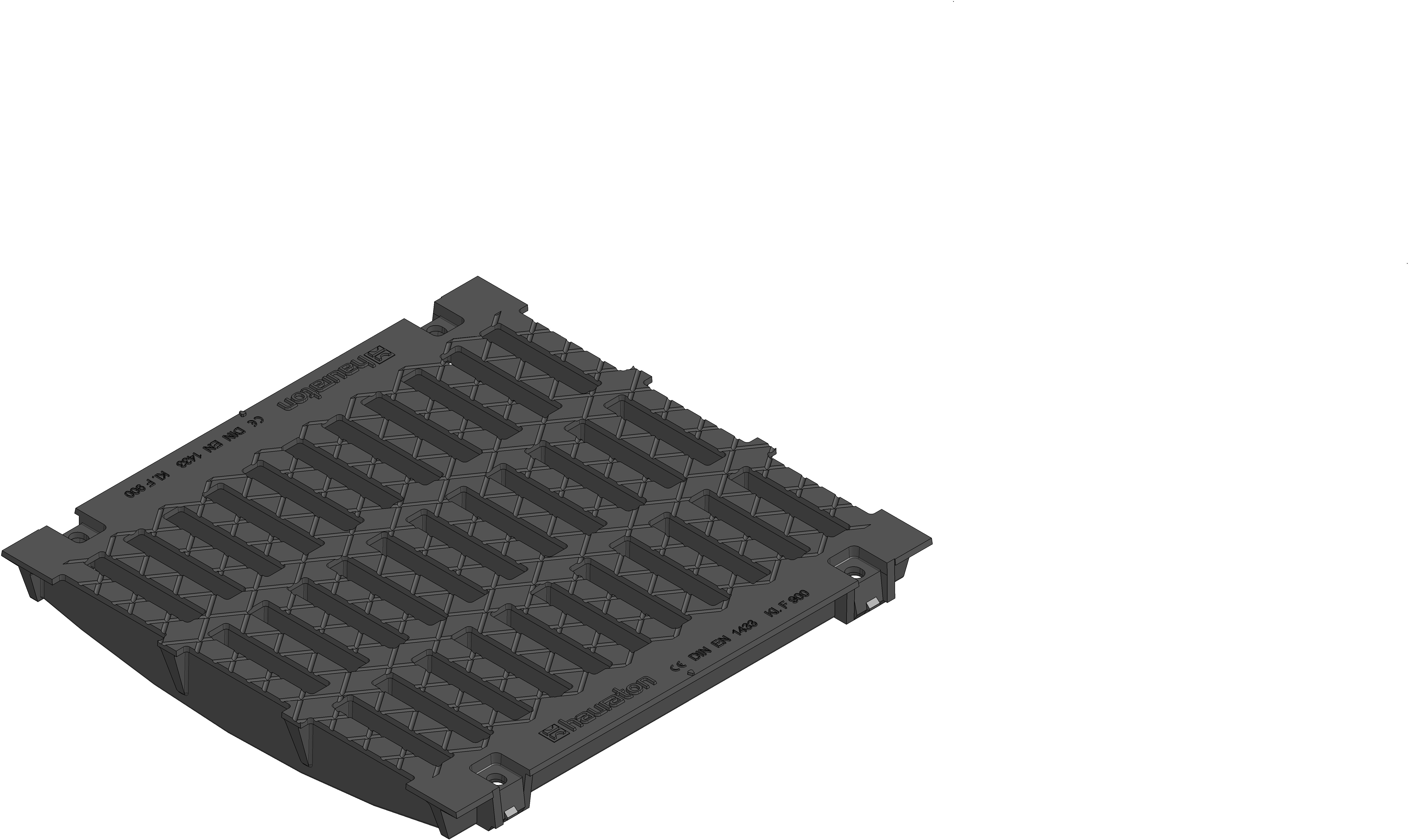

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
97498
Length
500 mm
Width
479 mm
Height
67 mm
Weight
31.73 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1613.0 cm²/m
Nominal size
400
Inlet opening
120 x 20 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating SW 3 x 120/20 mm, black, cl. F 900, with plastic caps, DRAINFIX CLEAN 400, 0,5 m
Product description
DRAINFIX CLEAN 400 - ductile iron grating made of spheroidal ductile iron GJS 500-7, SW 3 x 120/20 mm, black, with horizontal thrust resistance, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, fourfold locking, with plastic caps, installation length 500 mm, item no. 97498
