Article No. 96610
DRAINFIX TWIN, Seepage element made of recycled composite
TWIN 0/0, black (2-part, 506 L), both sides closed
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

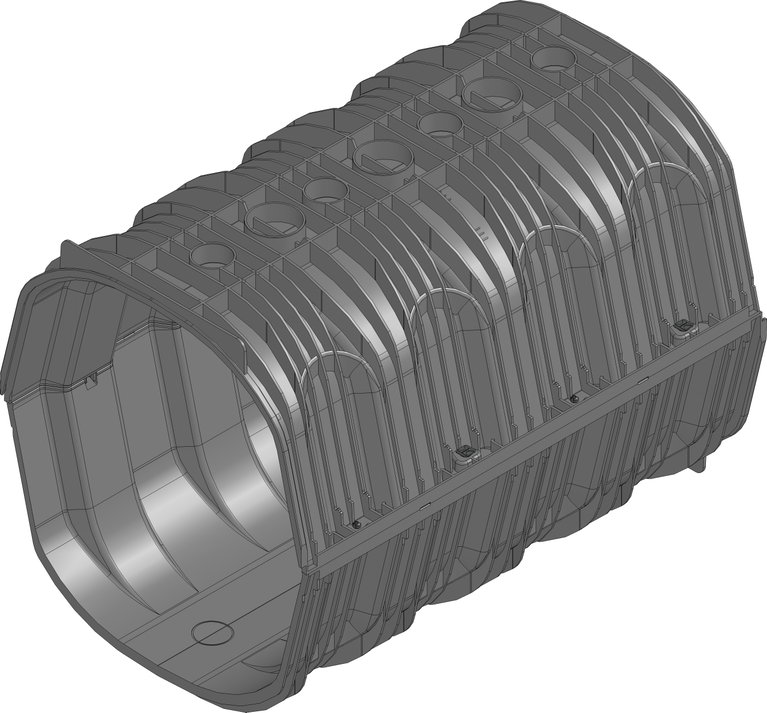

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
96610
Length
1145 mm
Width
760 mm
Height
870 mm
Weight
23.00 kg
Material
recycled, modified Polypropylene
Nominal size
650
Sales text
DRAINFIX TWIN 0/0 unit, 2-part, 506 L, top and bottom part solid, black, for attenuation, retention and infiltration of rainwater
Product description
DRAINFIX TWIN 0/0 unit, 2-part, top and bottom part solid, made or recycled polypropylene, black, for attenuation, retention and infiltration of rainwater, volume 506 litres, weight 23.0 kg, including 8x DRAINFIX TWIN locking pins and 2x DRAINFIX TWIN connectors, trafficable up to HGV 30 with suitable structure, LxWxH 1145x760x870 mm, item no. 96610
Packaging unit
16
Volumen
0.0 l
national declaration of performance
Nation DoP
Tender Texts
Installation instructions
Installation guide
Installation guide
Installation example
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 0/0
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
green space class Walkable, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
green space class Walkable, DRAINFIX TWIN 1 + 0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 (3x)
Pavement class SLW 30, DRAINFIX TWIN 0/1, 1/1, 1/0 in two levels
Asphalt class SLW 30, DRAINFIX TWIN 1 + 0 (3x)
