Article No. 65323
Extension frame element 30 x 30
Frame, type 150, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

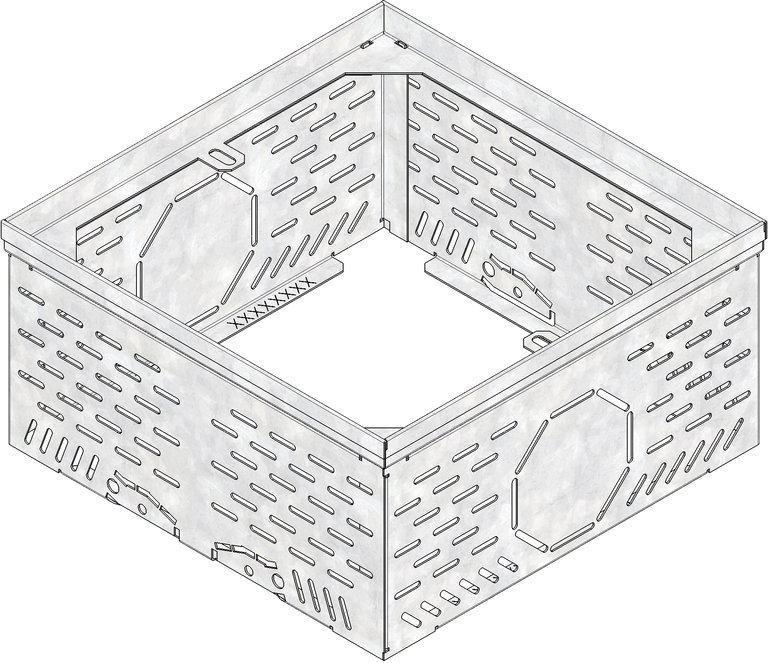

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
65323
Length
300 mm
Width
300 mm
Height
150 mm
Weight
1.59 kg
Material
strip galvanized steel
Height of angle housing
-
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX POINT Gully 30/30 type 150, also for maintenance purposes above a flat roof drain, galvanised, cl. A 15
Product description
DACHFIX POINT Gully 30/30 type 150, made of galvanised steel, also for maintenance purposes above a flat roof drain, with connection possibility for cross-intersection channel, load class A 15, LxWxH 300x300x150 mm, item no. 65323
Packaging unit
60
Tender Texts
Installation instructions
