Article No. 24372
FASERFIX BIG BL 200, class E 600
Ductile iron grating, closed, KTL-coated, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

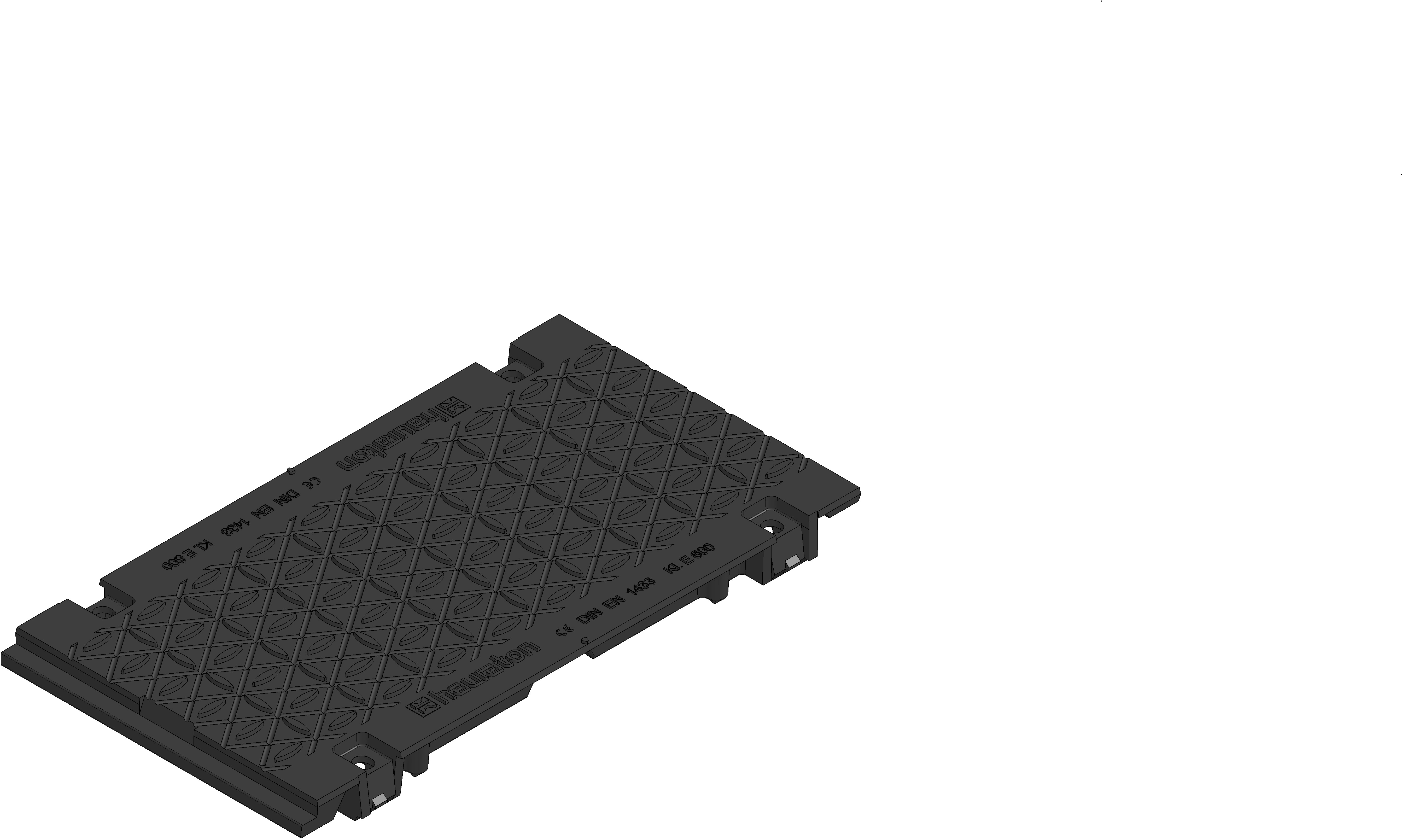

Product image
Technical drawing
Drawing
Data Sheet
Technical information and metrics
Article No.
24372
Length
500 mm
Width
279 mm
Height
55 mm
Inlay depth
40 mm
Weight
13.05 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL-coated, cl. E 600, FASERFIX SUPER 200, 0.5 m
Product description
FASERFIX SUPER 200 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 24372
Packaging unit
84
