Article No. 8151
FASERFIX KS 100, class B 125
Mesh grating MW 30/10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

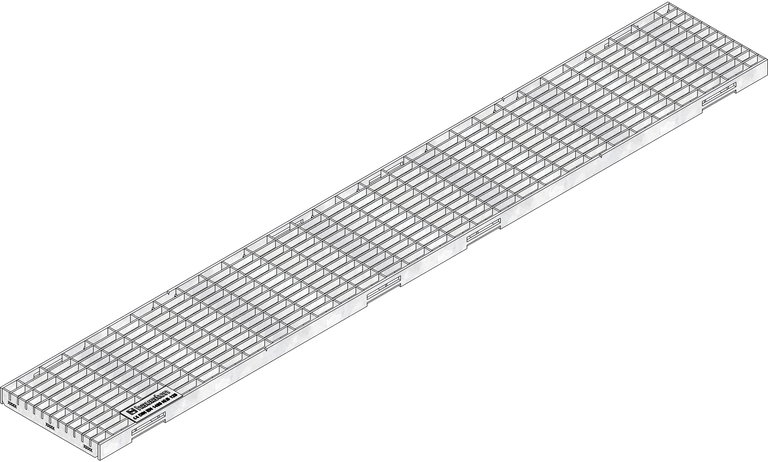

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
8151
Length
1000 mm
Width
149 mm
Height
21 mm
Einlegetiefe
20 mm
Weight
3.97 kg
Material
hot-dip galvanised steel
Intake cross-section
1322.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating, mesh width 30/10, galvanised, loading capacity B 125, KS 100, 1 m
Product description
KS 100 - mesh grating, mash weigth 30/10, galvanised, loading capacity B 125 acc. DIN 19580/EN 1433, CE-conform, length 1000mm, Item No. 8151
Packaging unit
200
Declaration of Performance
