Article No. 28170
FASERFIX KS 100, class C 250
Reinforced slotted grating, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

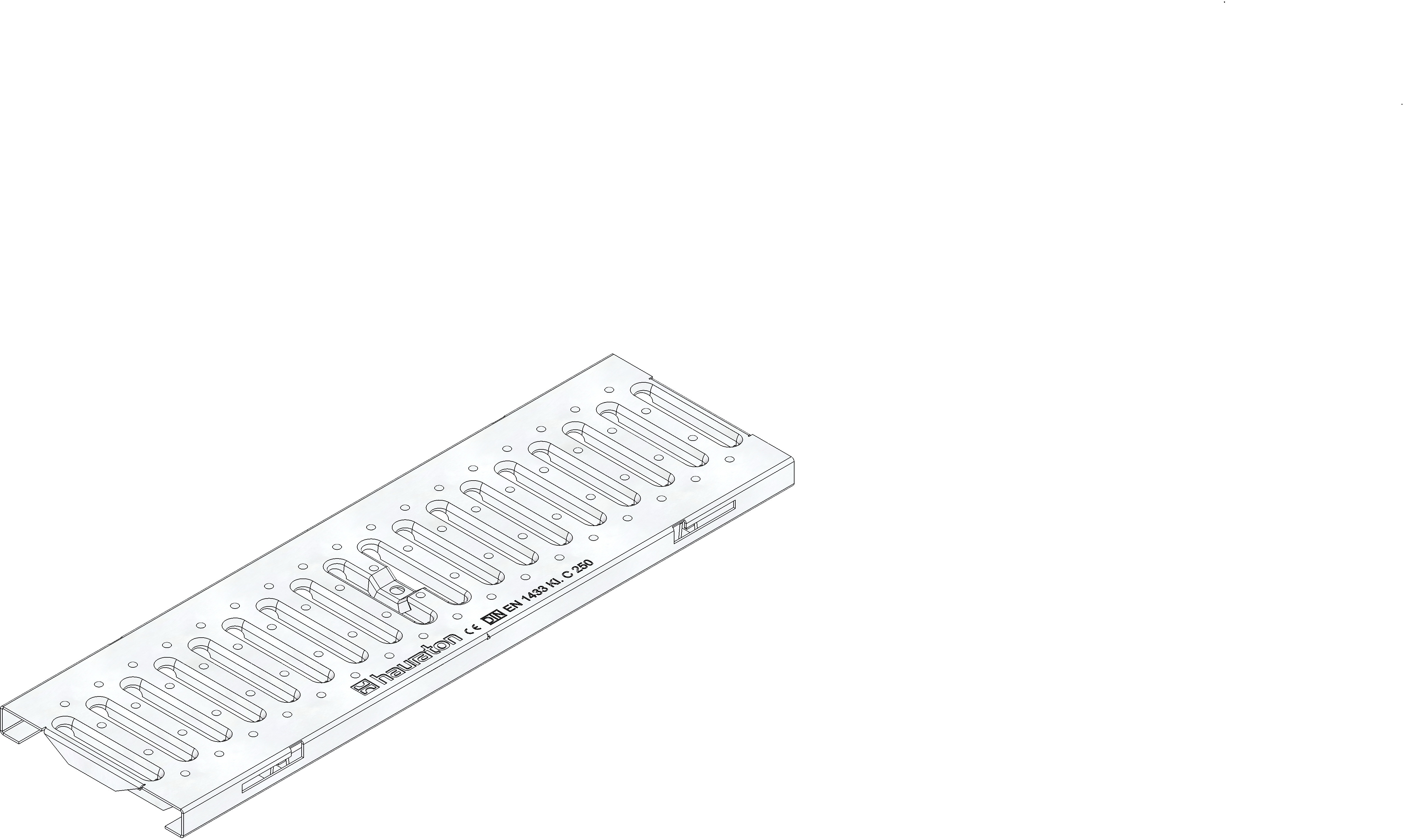

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28170
Length
500 mm
Width
149 mm
Height
27 mm
Inlay depth
20 mm
Weight
2.53 kg
Material
Stainless steel 1.4301
Intake cross-section
285.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Reinforced slotted grating, stainless steel, cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Reinforced slotted grating SW 80/10 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.28170
Packaging unit
384
Declaration of Performance
