Article No. 28071
FASERFIX KS 100, class E 600
Mesh grating MS 11/30 mm, galvanised, 1.0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

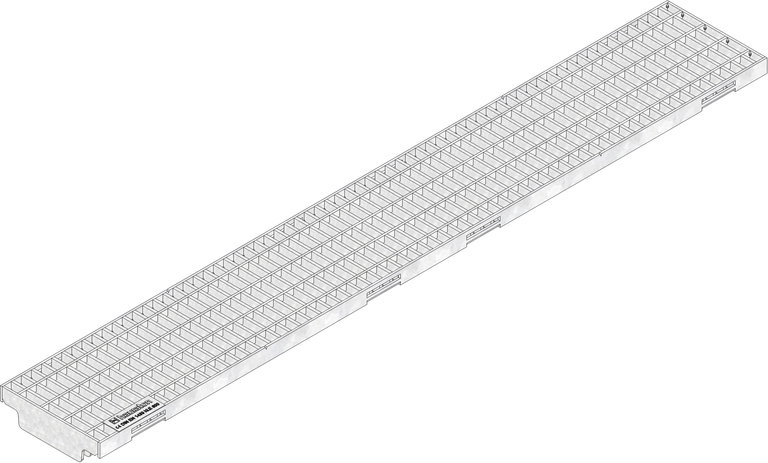

Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
28071
Length
1000 mm
Width
149 mm
Height
41 mm
Inlay depth
20 mm
Weight
11.00 kg
Material
hot-dip galvanised steel
Intake cross-section
950.0 cm²/m
Nominal size
100
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, galvanised, cl. E 600, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Mesh grating MS 11/30 mm, galvanised, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28071
Packaging unit
96
Declaration of Performance
