Article No. 28572
FASERFIX KS 100, class E 600
Mesh grating MS 11/30 mm, stainless steel, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

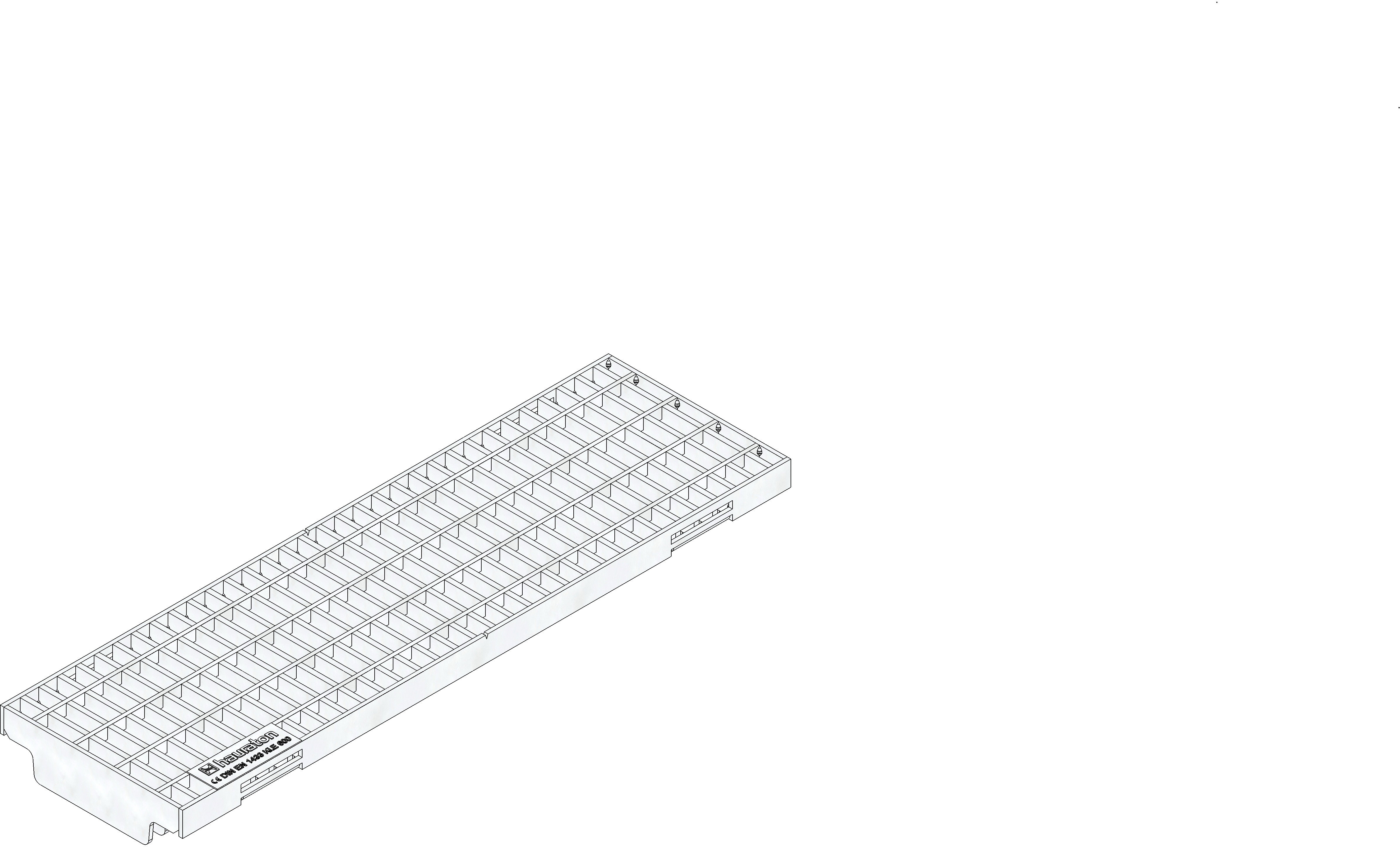

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
28572
Length
500 mm
Width
149 mm
Height
41 mm
Inlay depth
20 mm
Weight
5.80 kg
Material
Stainless steel 1.4301
Intake cross-section
935.0 cm²/m
Nominal size
100
Inlet opening
11 x 30 mm
Fixing type
SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, stainless steel, cl. E 600, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating MS 11/30 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.28572
Packaging unit
192
Declaration of Performance
