Article No. 10542
FASERFIX KS 150, class D 400
Mesh grating MS 30/10 mm, galvanised, 1.0 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

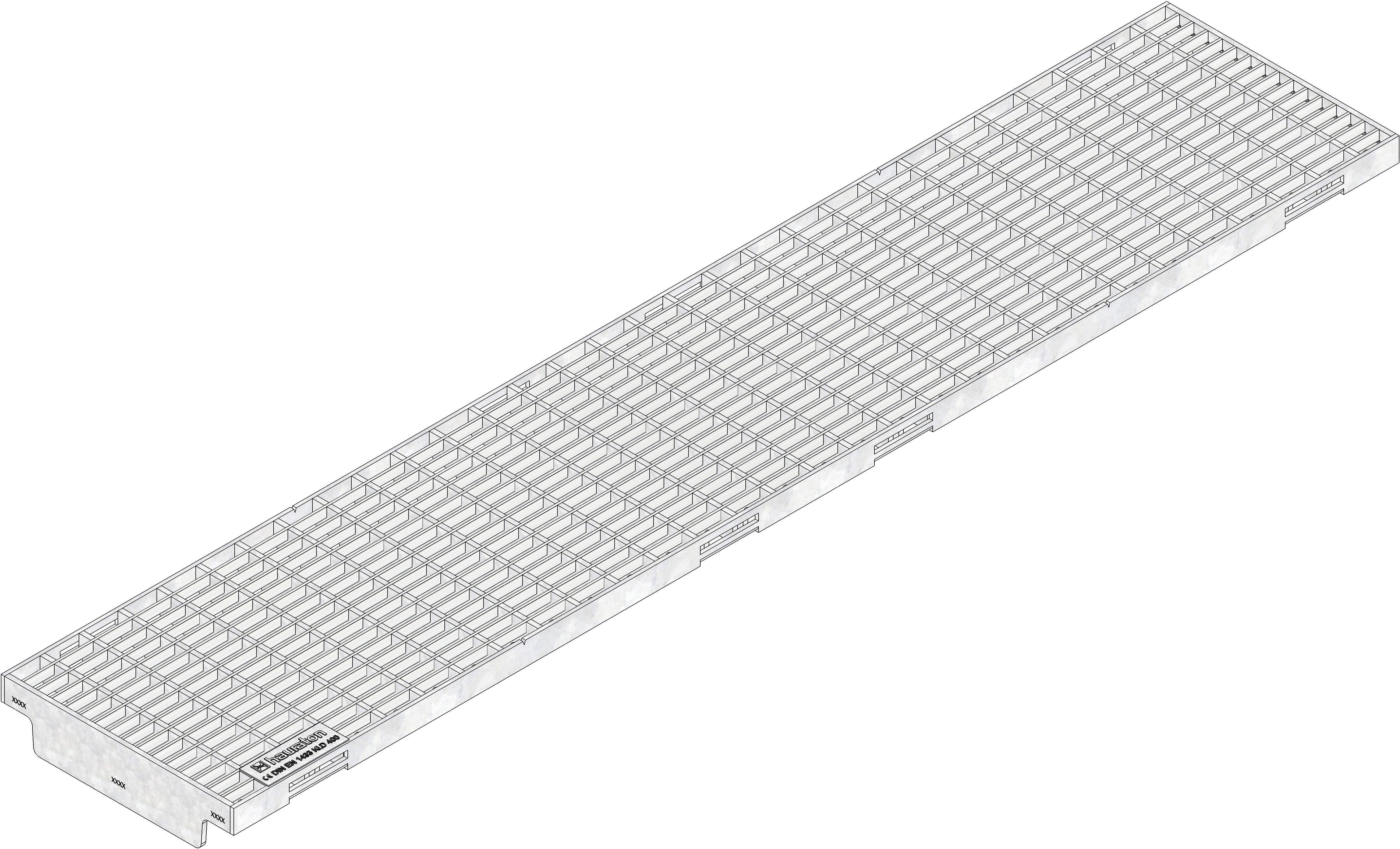

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10542
Length
1000 mm
Width
199 mm
Height
46 mm
Inlay depth
20 mm
Weight
10.29 kg
Material
hot-dip galvanised steel
Intake cross-section
1413.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Sales text
Mesh grating MS 30/10 mm, galvanised, cl. D 400, FASERFIX KS 150, 1 m
Product description
FASERFIX KS 150 - Mesh grating MS 30/10 mm, galvanised, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 10542
Packaging unit
84
Declaration of Performance
