Article No. 14463
FASERFIX KS 300, class D 400
Ductile iron grating SW 18 mm, black, 0,5 m
Questions?

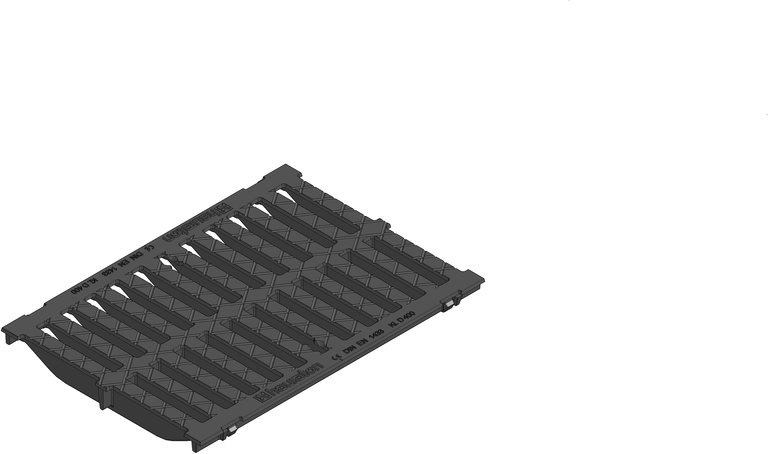

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
14463
Length
500 mm
Width
349 mm
Height
52 mm
Weight
12.92 kg
Material
Ductile iron GJS 500-7
Intake cross-section
1317.0 cm²/m
Nominal size
300
Inlet opening
140 x 18 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating, SW 18 mm, cl. D 400, KS 300, 0,5 m
Product description
FASERFIX KS 300 - ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x140/18mm, black, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, CE-conform, installation length 500 mm, item no. 14463
Packaging unit
72
