Article No. 33246
FASERFIX POINT KS 30/30, Point drainage, class E 600
2-part, with foul air trap and silt bucket made of recycled PP, with GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, with PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

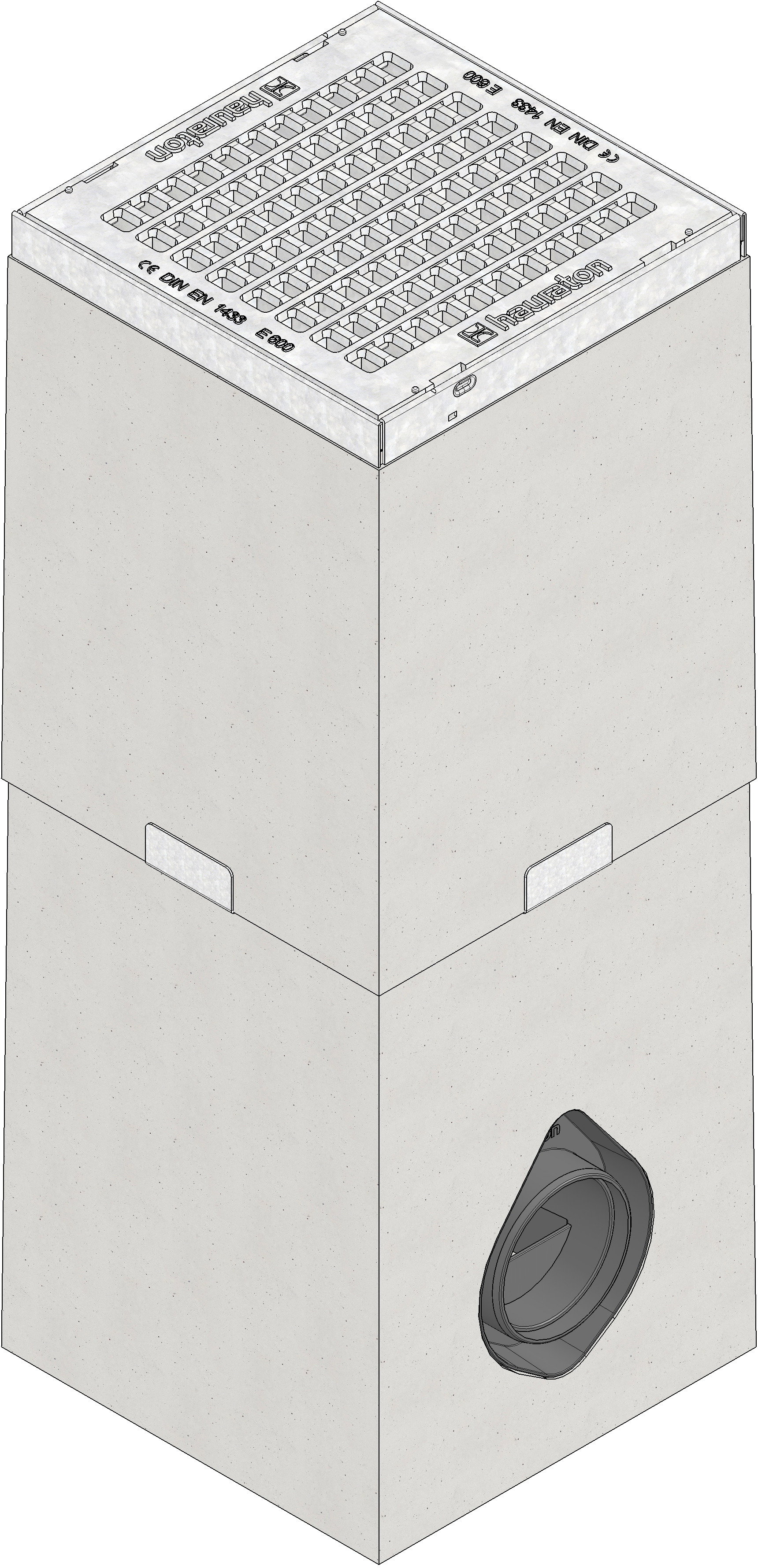

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33246
Length
300 mm
Width
300 mm
Height
802 mm
Weight
88.20 kg
Material
Ductile iron GJS 500-7 galvanised, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7 galvanised
Sales text
FASERFIX POINT KS 30/30 Gully, 2-part, with all-round edge frame made of galvanised steel, with foul air trap, silt bucket made of recycled PP, with integrated PVC-U pipe connection DN/OD 110 and GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, cl.
Product description
FASERFIX POINT KS 30/30 - Gully, 2-part, made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of recycled polypropylene and GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with boltless quick-locking system SIDE-LOCK, load class A 15 - E 600, LxWxH 300x300x802 mm, item no. 33246
Packaging unit
-
Tender Texts
Installation example
Pavement class D 400,
Pavement / green space class B 125,
Pavement class D 400,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
