Article No. 33239
FASERFIX POINT KS 30/30, Point drainage, class E 600, with foul air trap and silt bucket made of composite
with GUGI-Ductile iron mesh grating MW 15/25 mm, black, with PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical drawing
Drawing
Drawing (CAD)

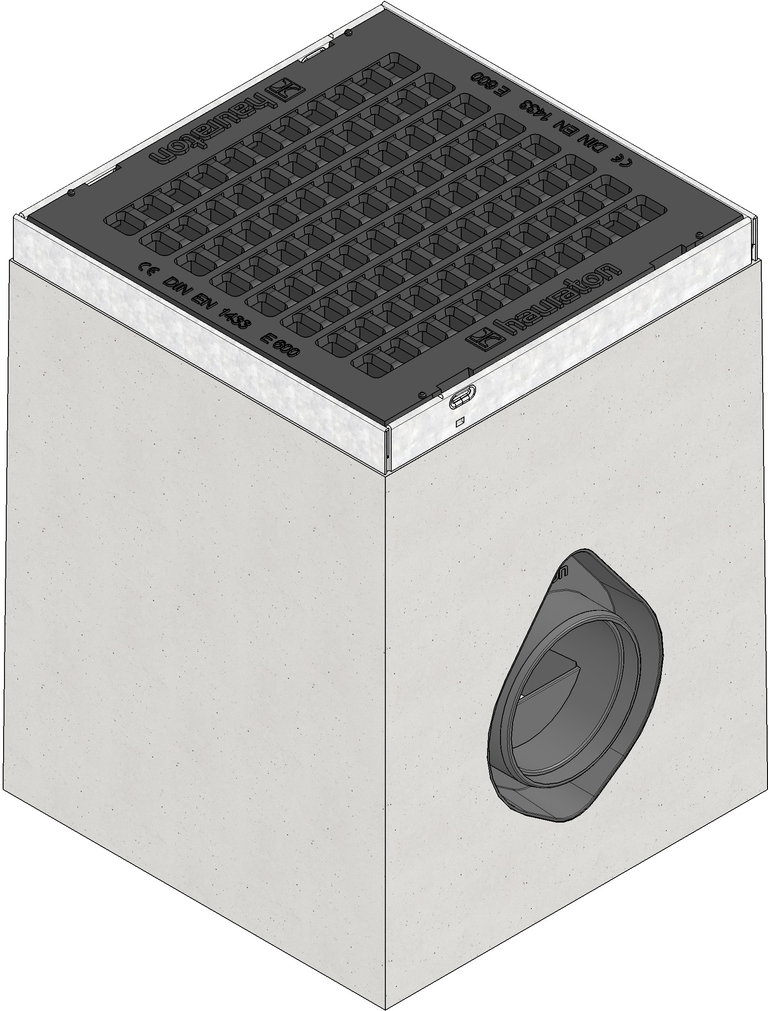

Product image
Data Sheet
Technical information and metrics
Article No.
33239
Length
300 mm
Width
300 mm
Height
400 mm
Weight
49.80 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7
Sales text
FASERFIX POINT KS 30/30 gully, one element, with all-round galvanised steel edge frame, with foul air trap, silt bucket made of composite, with integrated PVC-U pipe connection DN/OD 110 and GUGI-ductile iron mesh grating MW 15/25 mm, black, cl. E 600
Product description
FASERFIX POINT KS 30/30 - gully, made of fibre reinforced concrete, with all-round galvanised steel edge frame, with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of composite and GUGI-ductile iron mesh grating MW 15/25 mm made of spheroidal ductile iron GJS 500-7, black, loading capacity from A 15 - E 600, with boltless quick-locking system SIDE-LOCK, L/W/H 300x300x400 mm, item no. 33239
Packaging unit
-
Tender Texts

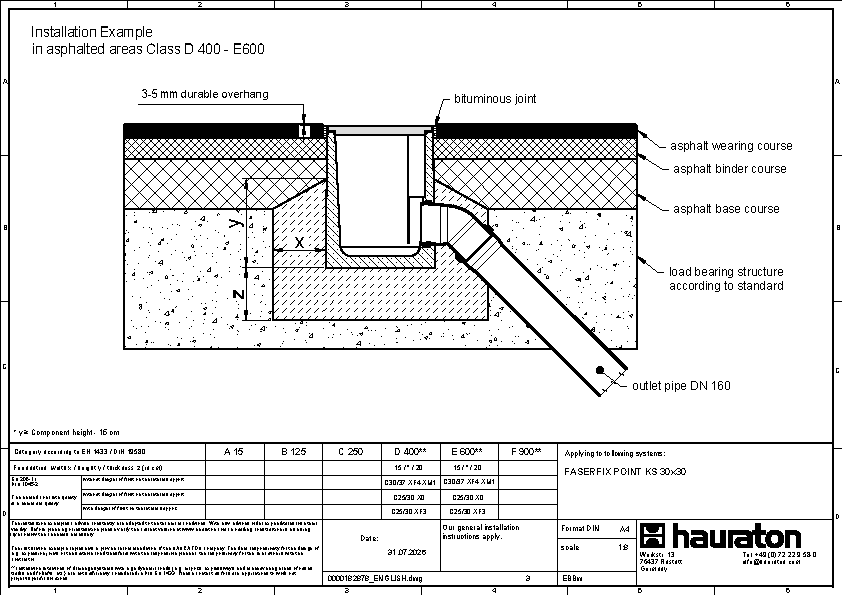

Installation example
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - E 600
Concrete class A 15 - E 600
