Article No. 11160
FASERFIX POINT KS 40/40, Point drainage, class E 600
2-part, with foul air trap and silt bucket made of recycled PP, with GUGI-ductile iron mesh grating MS 15/25 mm, black, with integrated PVC-U pipe connection DN/OD 160
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

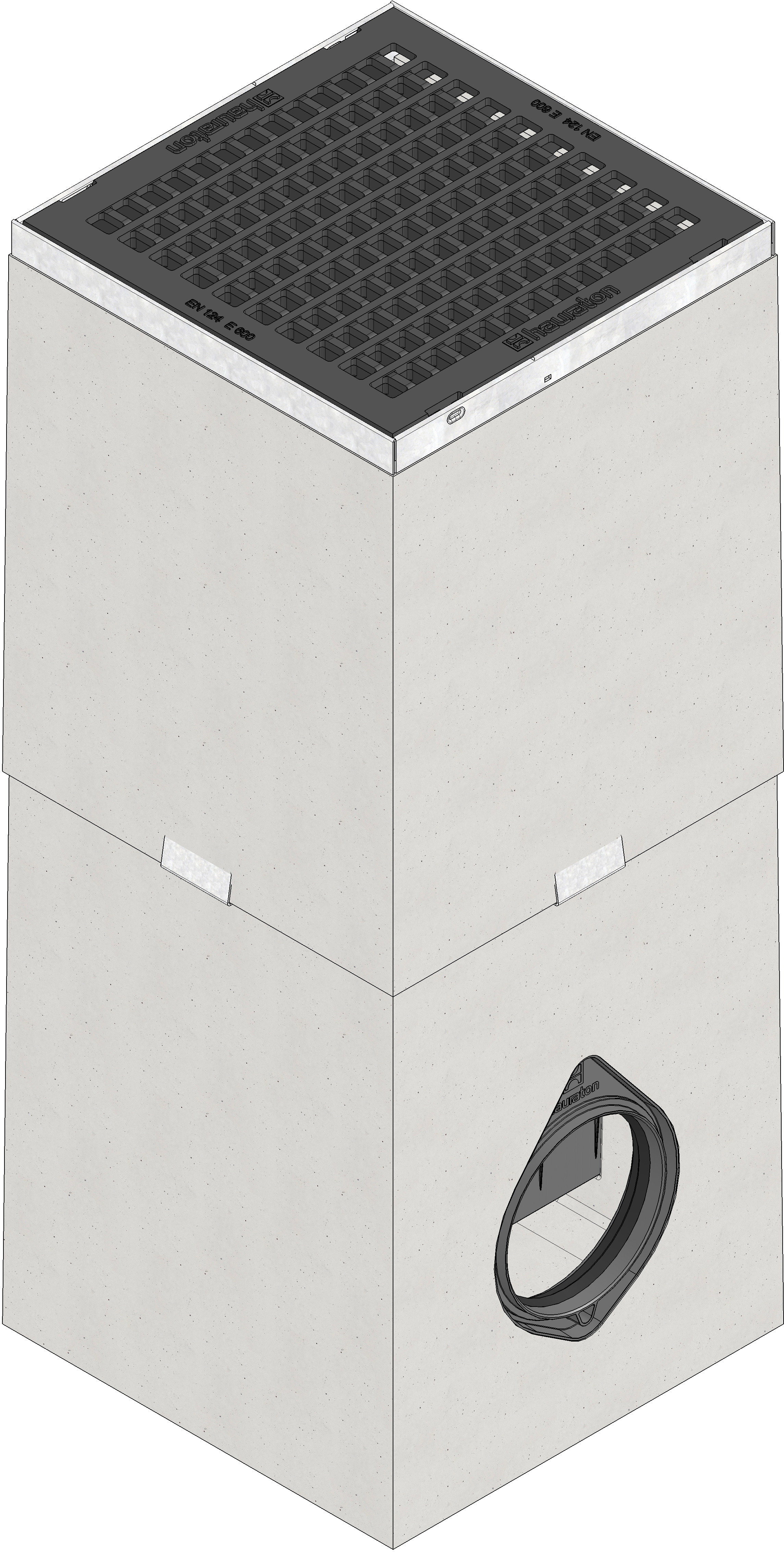

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
11160
Length
400 mm
Width
400 mm
Height
1002 mm
Weight
147.43 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7
Sales text
FASERFIX POINT KS 40/40 Gully, 2-part, with all-round edge frame made of galvanised steel, with foul air trap, silt bucket made of recycled PP, integrated PVC-U pipe connection DN/OD 160 and with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 60
Product description
FASERFIX POINT KS 40/40 Gully, 2-part, made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 160, with foul air trap, with silt bucket made of recycled polypropylene and GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS, black, with boltless quick-locking system SIDE-LOCK, load class A 15 - E 600, LxWxH 400x400x1002 mm, item no. 11160
Packaging unit
-
Tender Texts
Installation example
Pavement / green space class B 125,
Asphalt class E 600,
Concrete class E 600,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
