Article No. 11173
FASERFIX POINT KS 40/40, Point drainage, class E 600
3-part, for maintenance of underground car park drains, with silt bucket made of recycled PP, with GUGI-ductile iron mesh grating MS 15/25 mm, galvanised
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

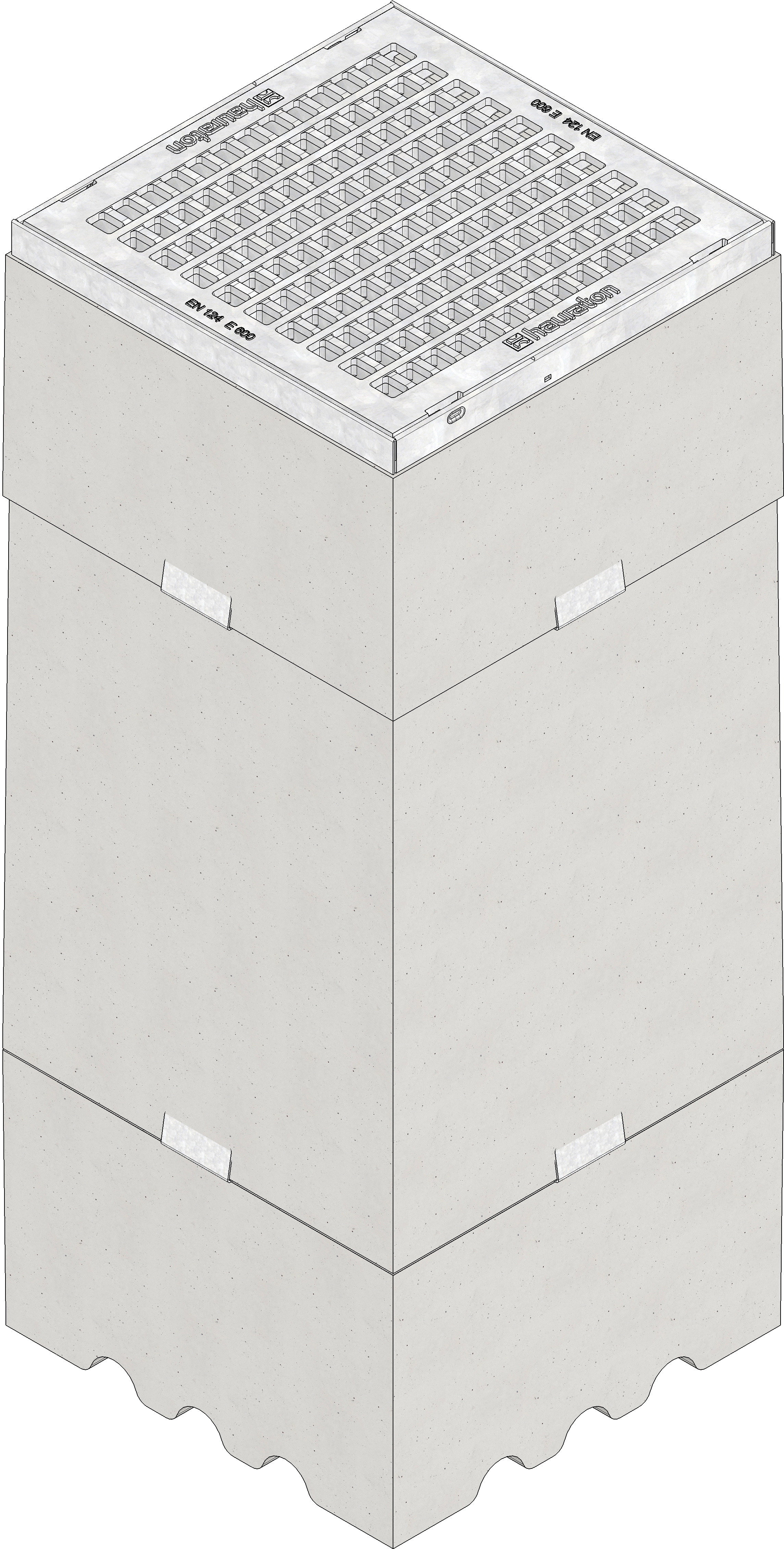

Product image
Technical drawing
Drawing (CAD)

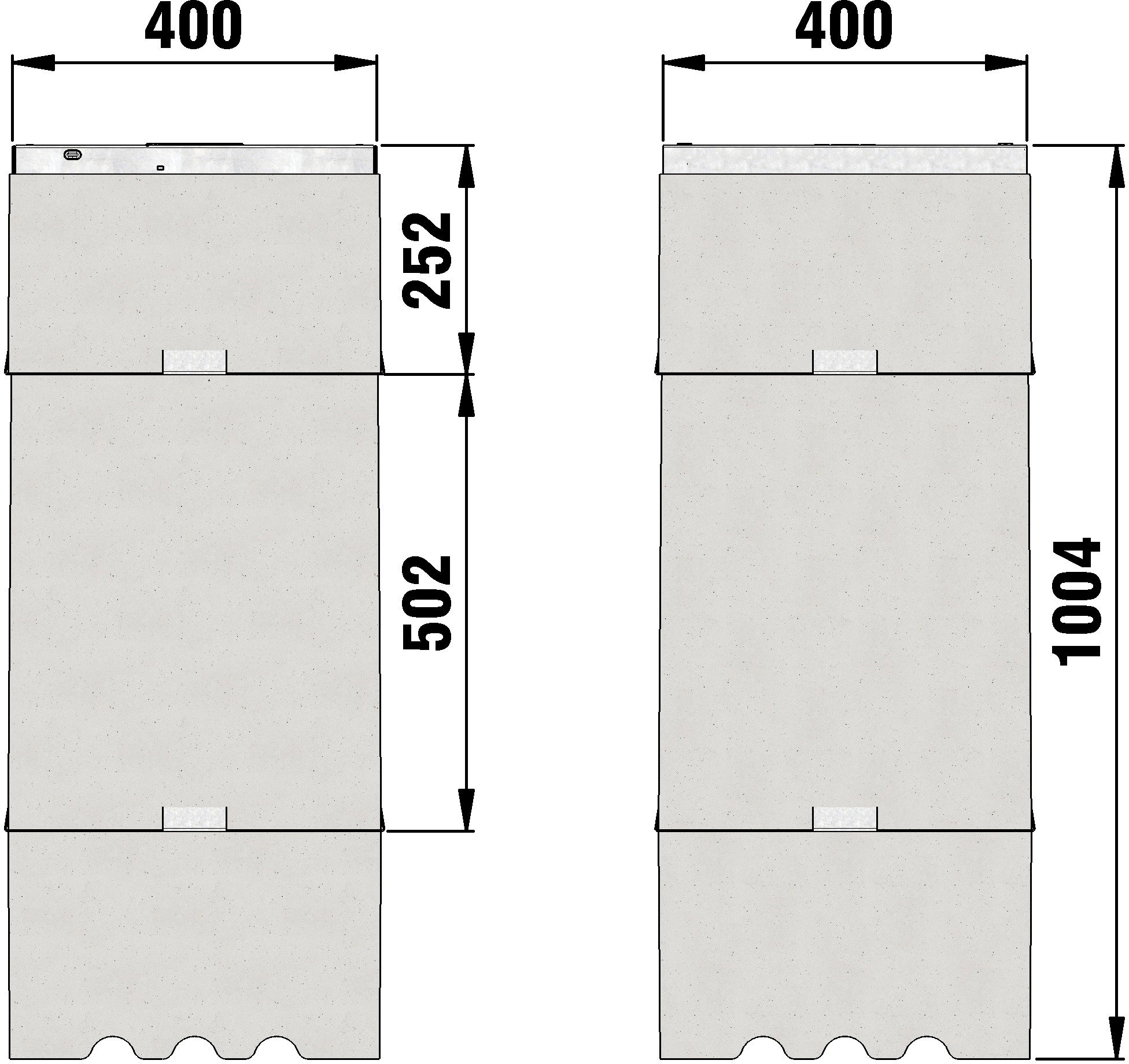

Drawing

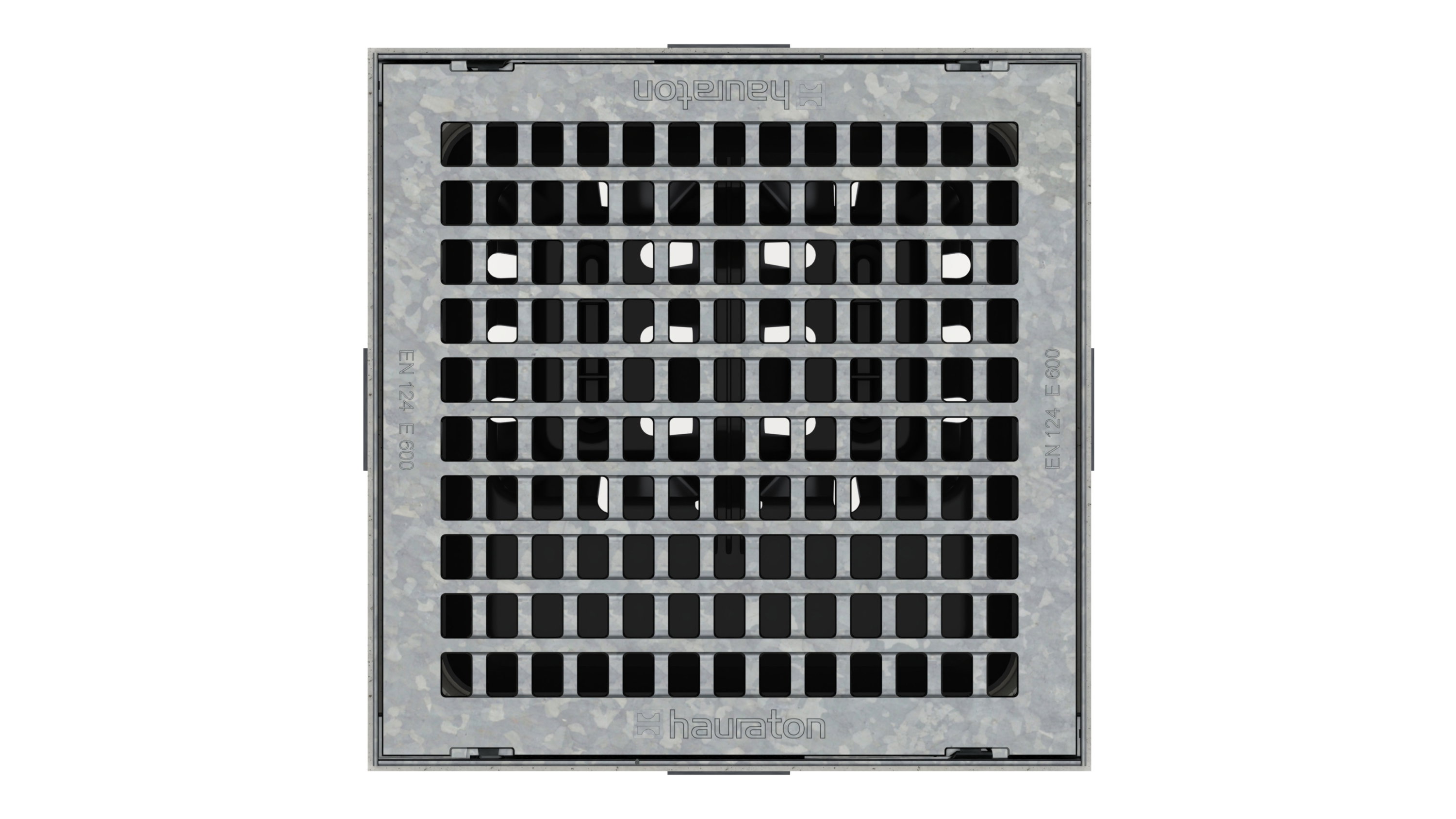

Top view
Data Sheet
Technical information and metrics
Article No.
11173
Length
400 mm
Width
400 mm
Height
1004 mm
Weight
129.70 kg
Material
Ductile iron GJS 500-7 galvanised, fibre-reinforced concrete, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7 galvanised
Sales text
FASERFIX POINT KS 40/40 Gully, 3-part, for maintenance of underground car park drains, with all-round edge frame made of galvanised steel, with silt bucket made of recycled PP and GUGI-ductile iron mesh grating MS 15/25 mm, galvanised, cl. E 600
Product description
FASERFIX POINT KS 40/40 - Gully, 3-part, for maintenance of underground car park drains, made of fibre-reinforced concrete, with all -round edge frame made of galvanised steel, with silt bucket made of recycled polypropylene and GUGI-ductile iron mesh grating MS 15 /25 mm, made of spheroidal ductile iron GJS 500-7, galvanised, with boltless quick-locking system SIDE-LOCK, load class A 15 - E 600 , LxWxH 400x400x1004 mm, item no. 11173
Packaging unit
-
Tender Texts
Installation example
Pavement / green space class B 125, 3-piece
Asphalt class E 600, 3-piece
Concrete class E 600, 3-piece
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
