Article No. 40180
FASERFIX STANDARD 150, class B 125

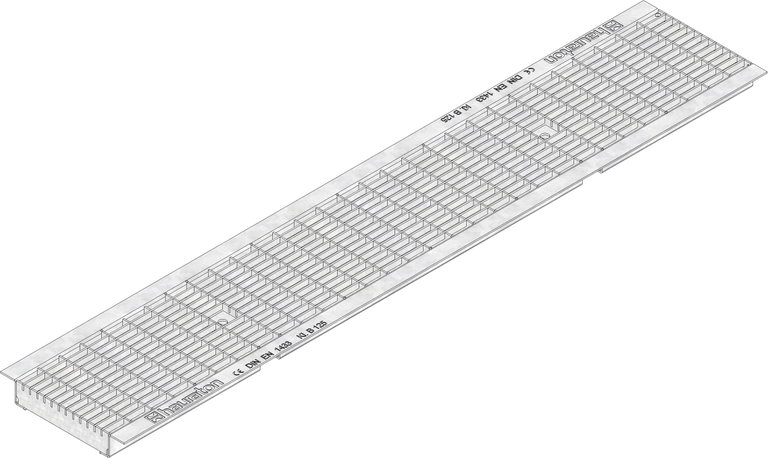

Mesh grating MS 30/10 mm, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40180
Length
1000 mm
Width
192 mm
Height
33 mm
Inlay depth
2 mm
Weight
5.95 kg
Material
hot-dip galvanised steel
Intake cross-section
1075.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Loose blatant, Locking handle
Material grating
hot-dip galvanised steel
Regulations
EN 1433, AS 4586
Sales text
Mesh grating MS 30/10, galvanised, cl. B 125, RECYFIX STANDARD 150, 1 m
Product description
RECYFIX STANDARD 150 - Mesh grating MS 30/10 mm, galvanised, overlying, load class A 15 - B 125 according to EN 1433, installation length 1000 mm, item no. 40180
Packaging unit
150
Declaration of Performance
