Article No. 33214
FASERFIX STANDARD 150
for NW 150, for type 01 - 010, with silt bucket made of recycled PP, with integrated PVD-U socket DN/OD 160, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33214
Length
500 mm
Width
210 mm
Height
583 mm
Weight
65.00 kg
Nominal size
150
Sales text

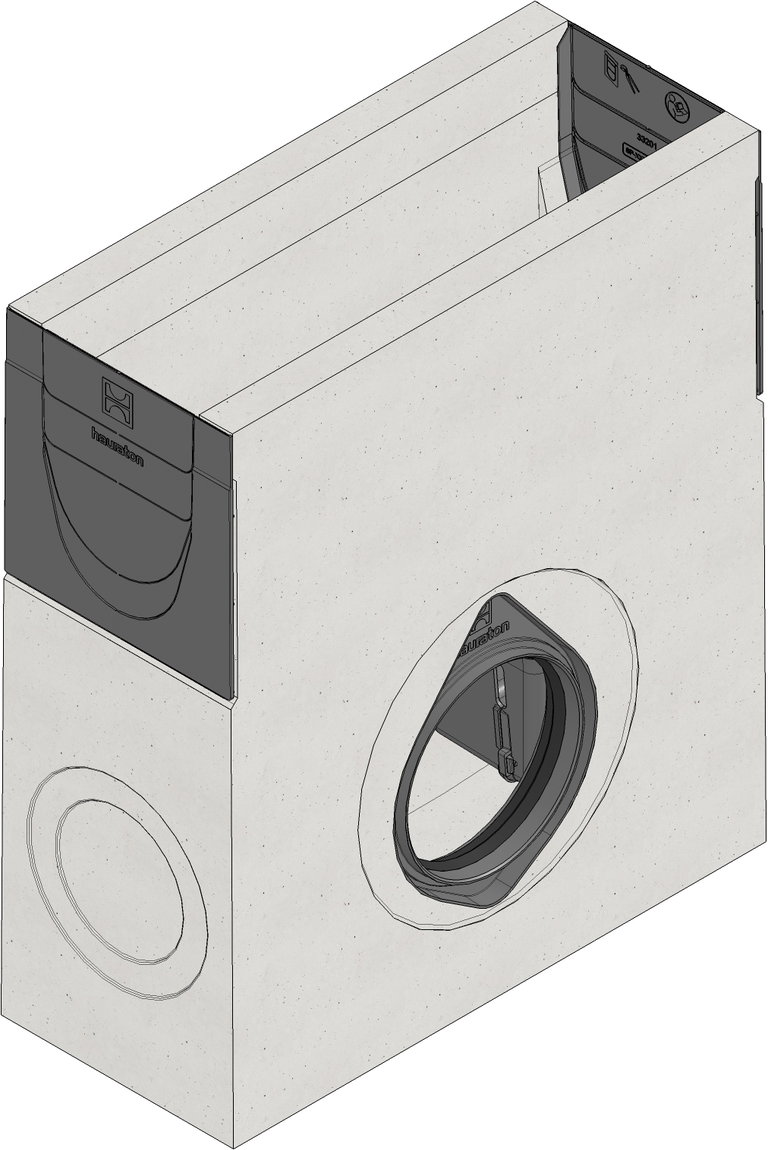

Sump unit, lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled PP and 2 end caps made of recycled PP, for channels type 01 - 010, FASERFIX STANDARD 150, 0.5 m
Product description
FASERFIX STANDARD 150 - Sump unit made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, CE compliant, connection possibility DN/OD 110 and DN/OD 160 on front and end side as well as lateral with integrated PVC-U socket DN/OD 160, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channels type 01 - 010, easy to assemble on site, LxWxH 500x210x583 mm , item no. 33214
Packaging unit
6
