Article No. 6270
FASERFIX STANDARD E 100, car traffic
Slotted grating SW 80/9 mm, galvanised, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Top view

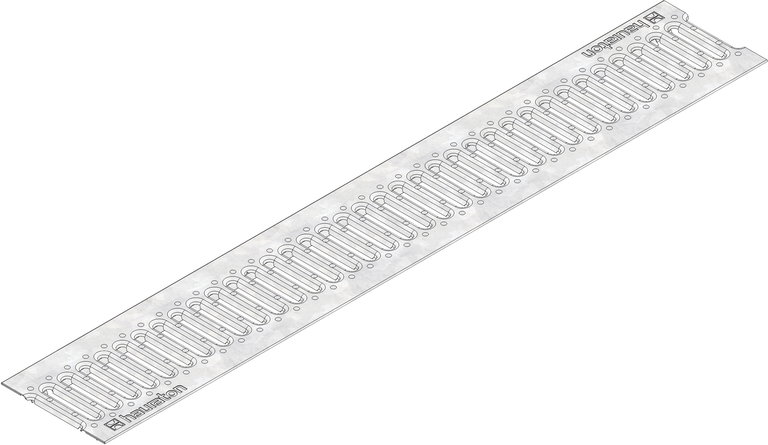

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
6270
Length
1000 mm
Width
157 mm
Height
22 mm
Inlay depth
3 mm
Weight
2.41 kg
Material
strip galvanized steel
Intake cross-section
259.0 cm²/m
Nominal size
100
Inlet opening
80 x 9 mm
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch
Material grating
strip galvanized steel
Regulations
EN 1433
Sales text
Slotted grating SW 80/9 mm, overlying, galvanised, trafficable, FASERFIX STANDARD E 100, 1 m
Product description
FASERFIX STANDARD E 100 - Slotted grating SW 80/9 mm, galvanised, trafficable, overlying, installation length 1000 mm, item no. 6270
Packaging unit
300
Declaration of Performance
