Article No. 6200
FASERFIX STANDARD E 100
Type 01, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

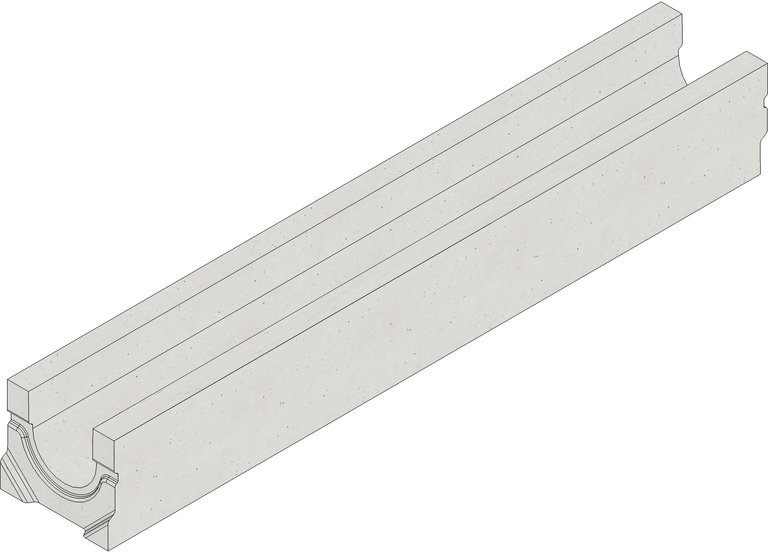

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
6200
Length
1000 mm
Width
162 mm
Height
140 mm
Weight
32.50 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
89 cm²
Fall
-
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 channel Type 01
Product description
FASERFIX STANDARD E 100 Type 01 - Channel made of fibre reinforced concrete, loading capacity from A 15 up to C 250, in conjunction with Slotted Covers up to class E 600, according to EN 1433, CE-compliant, without crossing bars in the channel line, with safety joint, L/W/H 1000x162x140 mm, Item No. 6200
Packaging unit
35
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class E 600
Installation instructions
