Article No. 6208
FASERFIX STANDARD E 100 with gradient 0.6 %, up to class C 250
Type 8, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

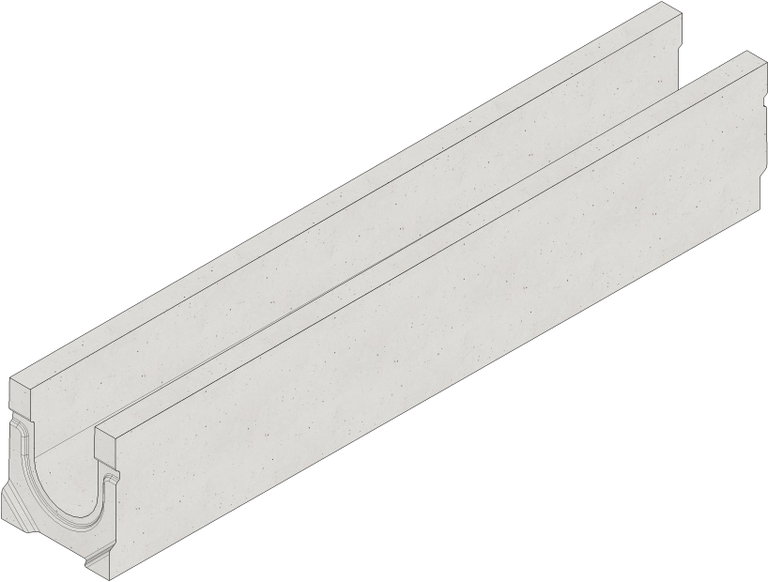

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
6208
Length
1000 mm
Width
162 mm
Height
182 - 188 mm
Weight
38.00 kg
Material
fibre-reinforced concrete
Height of angle housing
-
Nominal size
100
Internal channel cross-section
131 cm²
Fall
0.6 %
Fixing type
Loose blatant, Slotted grating, Anti-vandal locking catch, Locking handle
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX STANDARD E 100 Channel body type 8
Product description
FASERFIX STANDARD E 100 type 1 - 10 - Channel body made of fibre-reinforced concrete, load class A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to load class E 600, CE compliant, with built-in fall, with sealing groove, LxWxH 1000x162x140 -194 mm, item no. 6201 - 6210
Packaging unit
21
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125, channel height ≥ 150 mm
Asphalt class A 15 - C 250, channel height ≥ 150 mm
Concrete class C 250, channel height ≥ 150 mm
Pavement class C 250, channel height ≥ 150 mm
Installation instructions
