Article No. 24000
FASERFIX SUPER 300 with galvanised angle housings, up to load class F 900
Type 01, 1.0 m
Delivery time on request

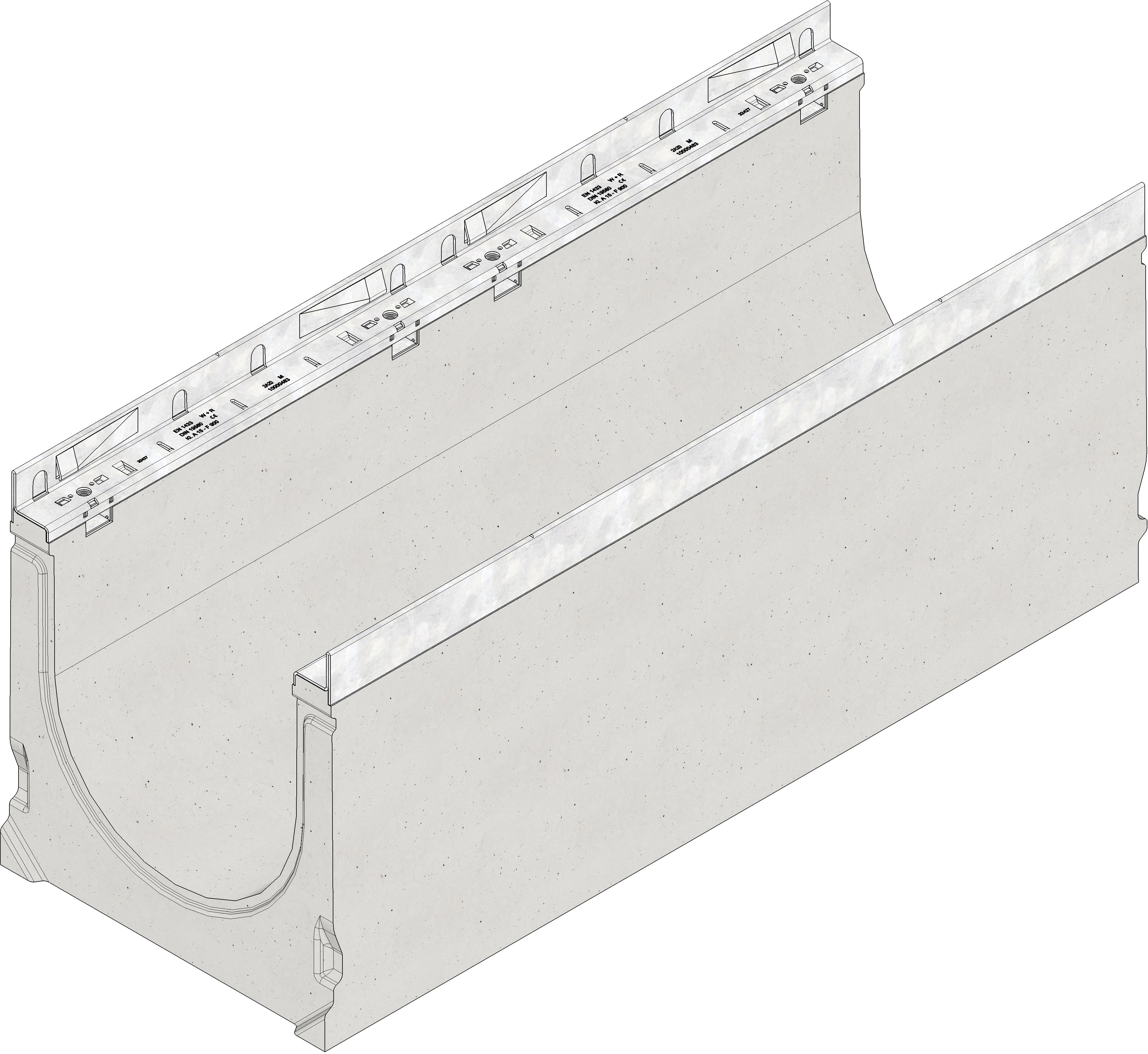

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
24000
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
158.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
803 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
Steel with zinc-magnesium coating
Regulations
EN 1433, DIN 19580
Sales text
FASERFIX SUPER 300 Channel body type 01 with edge frames made of galvanised steel, 1 m
Product description
FASERFIX SUPER 300 type 01 - Channel body made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the grating, 8-fold bolting additionally possible, 8-fold locking, with sealing groove, grating inlay depth 40 mm, LxWxH 1000x390x415 mm, item no. 24000
Packaging unit
6
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class D 400,
Asphalt class D 400, in ramps
Asphalt class D 400, with curb
Concrete class D 400, with curb
Asphalt class D 400 - E 600,
Concrete class D 400 - F 900,
Pavement class D 400,
Asphalt class D 400 - E 600,
Asphalt class D 400 - E 600, with ledge stone
Concrete class D 400 - F 900, in ramps
Concrete class E 600, as double strand
Asphalt class F 900,
Concrete class F 900, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
