Article No. 13830

RECYFIX HICAP F 10000 up to load class F 900

Type 10200, ductile iron slotted grating SW 28 mm, KTL-coated, 1.14 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

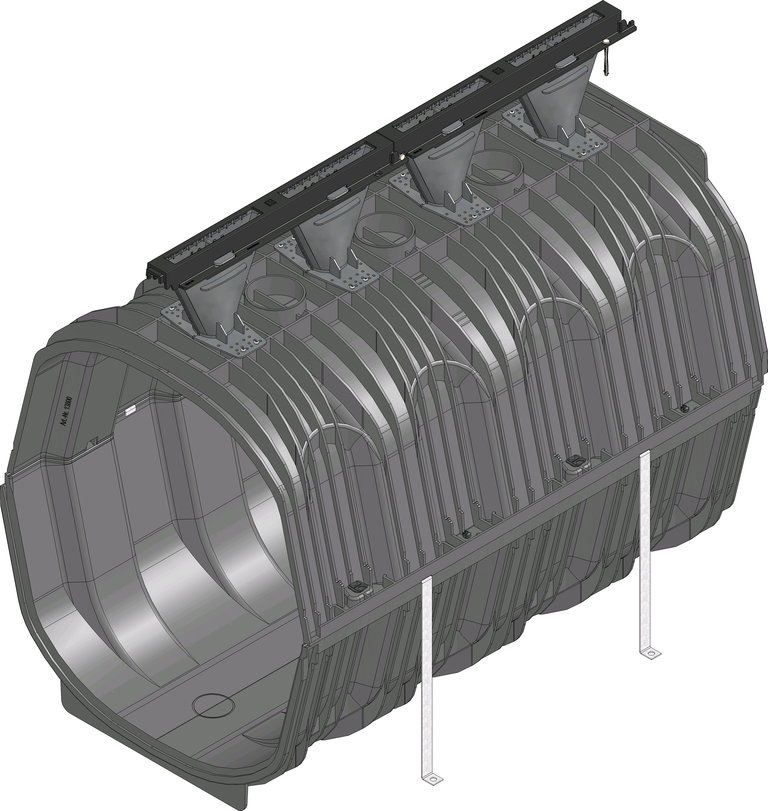

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
13830
Length
1145 mm
Width
760 mm
Height
1070 mm
Weight
30.54 kg
Material
ABS, Ductile iron GJS 500-7, Galvanised steel, Polyamide, recycled, modified Polypropylene, strip galvanized steel
Height of angle housing
244 mm
Intake cross-section
247.0 cm²/m
Nominal size
10000
Internal channel cross-section
4430 cm²
Fall
-
Height funnel
200 mm
Inlet opening
0 mm
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 10200 with ductile iron slotted grating SW 28 mm, KTL-coated, cl. F 900, 1.14 m
Product description
RECYFIX HICAP F 10200 consists of a closed channel body made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 28 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1140 mm, item no. 13830
Packaging unit
1

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Asphalt class A 15 - D 400,

Installation example

Concrete class B 125 - D 400,

Installation example

Pavement class D 400,

Installation example

Concrete class D 400 - F 900, RECYFIX HICAP F 10200 with shaft construction F 900

Installation example

Concrete class D 400 - F 900, RECYFIX HICAP F 10300 with shaft construction F 900

Installation example

Asphalt class E 600 - F 900,

Installation example

Concrete class E 600 - F 900,

Installation example

Asphalt class D 400, RECYFIX HICAP 10200 Inspection element

Installation example

Concrete class D 400, RECYFIX HICAP 10200 Inspection element

Installation example

Asphalt class E 600 - F 900, RECYFIX HICAP 10200 Inspection element

Installation example

Asphalt class E 600 - F 900, RECYFIX HICAP 10300 Inspection element

Installation example

Concrete class E 600 - F 900, RECYFIX HICAP 10200 Inspection element

Installation example

Concrete class E 600 - F 900, RECYFIX HICAP 10300 Inspection element

Installation example
