Article No. 13776

RECYFIX HICAP F 5000 up to load class E 600

Access element, with ductile iron grating, closed, KTL coated, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

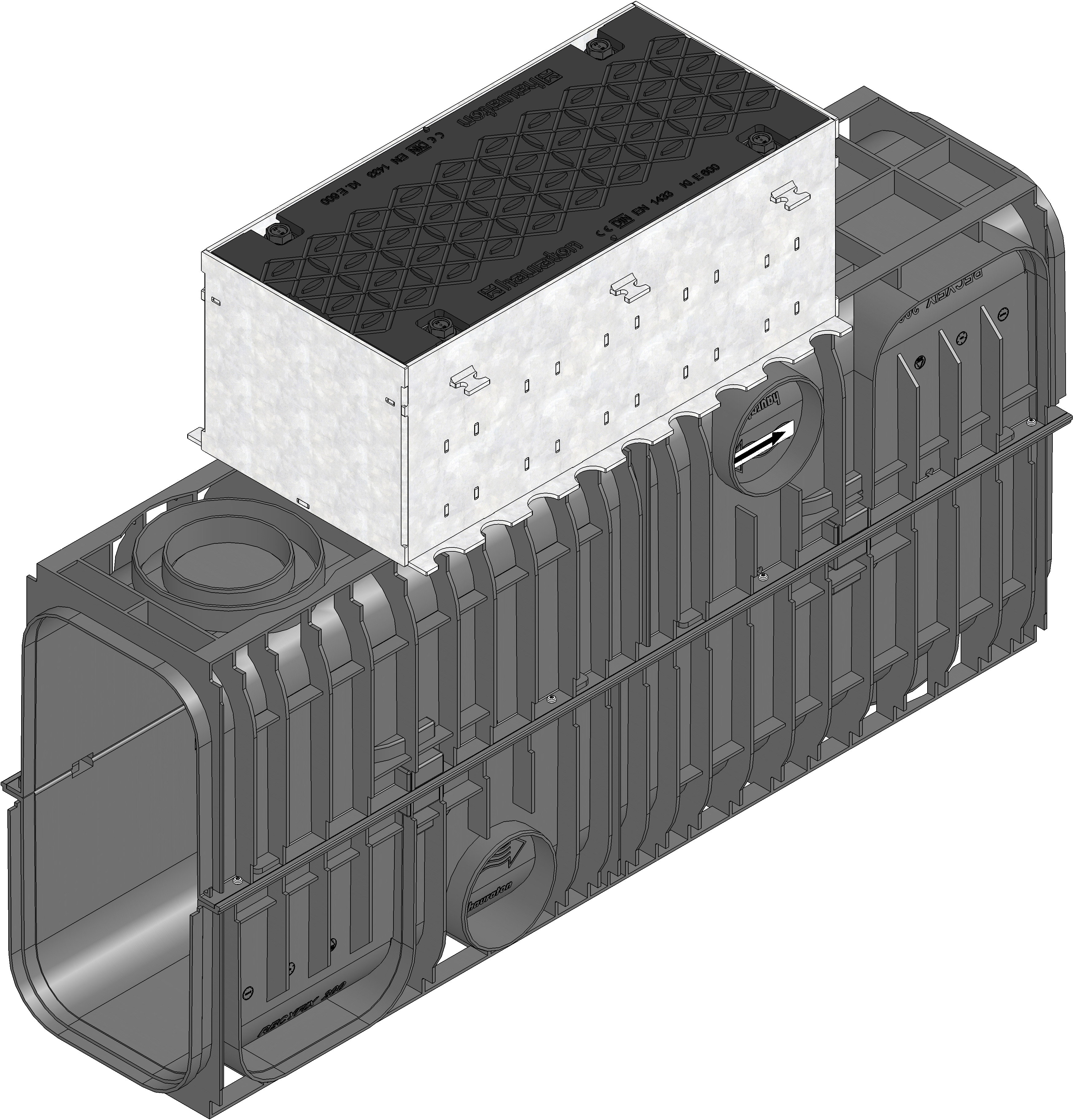

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
13776
Length
1000 mm
Width
256 mm
Height
665 mm
Weight
37.31 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Stainless steel (V2A), Steel 8.8 zinc-laminated black, strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
5000
Type according to DIN EN 1433
M
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Access unit with ductile iron grating closed, KTL-coated, cl. E 600, RECYFIX HICAP 5200, 1 m
Product description
RECYFIX HICAP 5200 - Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene and top element, height 200 mm, made of galvanised steel, with ductile iron grating closed made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, 4-fold locking, load class A 15 - E 600 according to EN 1433, length 1000 mm, item no. 13776
Packaging unit
4

Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class A 15 - C 250, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Asphalt class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 with stainless steel angle housing in wave or slot design

Installation example

Asphalt class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Concrete class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Pavement class D 400, RECYFIX HICAP F 1200, 2200, 3200, 5200 in connection with stainless steel frame in Wave or Slot design

Installation example

Pavement class D 400, RECYFIX HICAP F 1300, 2300, 3300, 5300 in connection with stainless steel frame in Wave or Slot design

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Asphalt class A 15 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1200, 2200, 3200, 5200

Installation example

Concrete class B 125 - F 900, RECYFIX HICAP F 1300, 2300, 3300, 5300

Installation example

Concrete class A 15 - F 900, RECYFIX HICAP F 1200 - 8200 u. 1300 - 8300 with inlet box and L- or T-shaped channel connection

Installation example

Asphalt class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Concrete class D 400 - F 900, RECYFIX HICAP 5200 Inspection element

Installation example

Asphalt class E 600 - F 900, RECYFIX HICAP 5300 Inspection element

Installation example

Concrete class E 600 - F 900, RECYFIX HICAP 5300 Inspection element

Installation example
