Article No. 13630

RECYFIX HICAP F 8000 up to load class F 900

Type 8200, ductile iron slotted grating SW 28 mm, KTL-coated, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

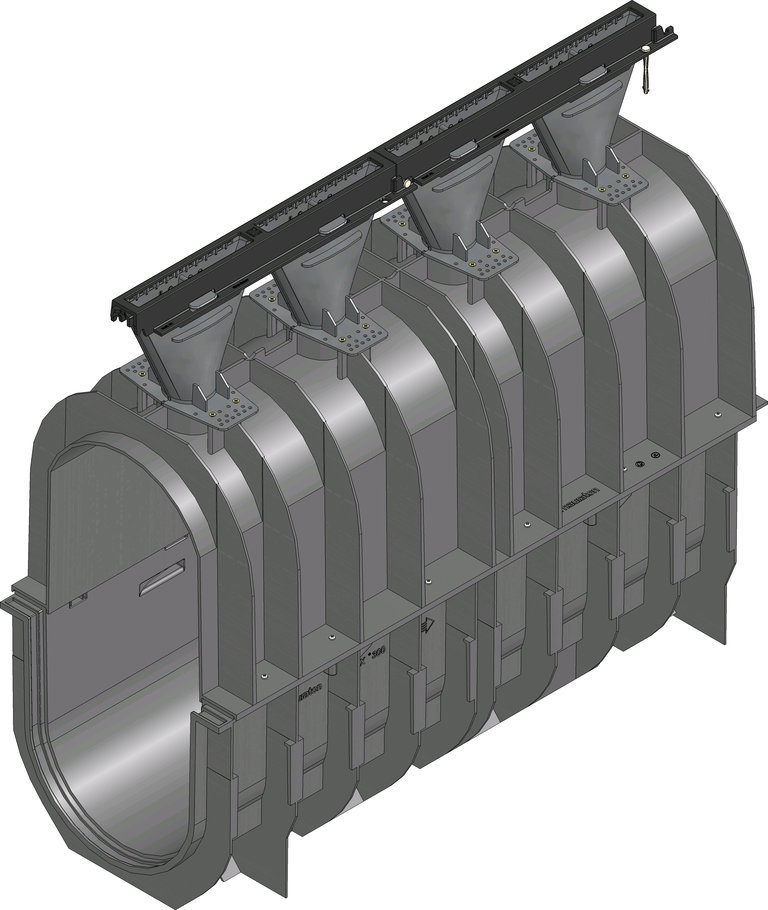

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
13630
Length
1000 mm
Width
432 mm
Height
950 mm
Weight
21.64 kg
Material
ABS, Aluminium, Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, Polyamide, recycled, modified Polypropylene
Height of angle housing
254 mm
Intake cross-section
248.0 cm²/m
Nominal size
8000
Internal channel cross-section
1714 cm²
Fall
-
Height funnel
200 mm
Inlet opening
28 x 220 mm
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX HICAP F 8200 with ductile iron slotted grating SW 28 mm, KTL-coated, cl. F 900, 1 m
Product description
RECYFIX HICAP F 8200 consists of a closed channel body, made of recycled polypropylene, with inlet funnel, with integrated ductile iron slotted grating SW 28 mm, KTL-coated, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13630
Packaging unit
6

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - C 250,

Installation example

Concrete class B 125 - E 600,

Installation example

Asphalt class A 15 - E 600,

Installation example

Asphalt class F 900,

Installation example

Concrete class F 900,

Installation example

Asphalt class D 400 - E 600, RECYFIX HICAP 8200 Inspection element

Installation example

Concrete class D 400 - E 600, RECYFIX HICAP 8200 Inspection element

Installation example

Asphalt class F 900, RECYFIX HICAP 8200 Inspection element

Installation example

Asphalt class F 900, RECYFIX HICAP 8300 Inspection element

Installation example

Concrete class F 900, RECYFIX HICAP 8200 Inspection element

Installation example

Concrete class F 900, RECYFIX HICAP 8300 Inspection element

Installation example
