Article No. 42421
RECYFIX NC 400, class D 400
Type 010 with ductile iron grating, black, SW 3 x 118 (133)/18 mm, 8-folt bolted, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

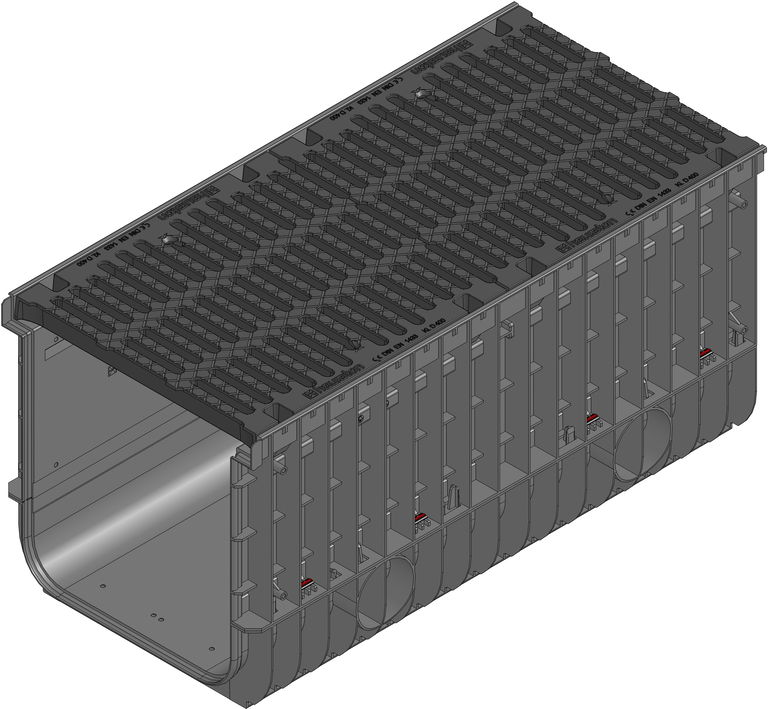

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
42421
Length
1000 mm
Width
500 mm
Height
500 mm
Einlegetiefe
40 mm
Weight
57.15 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
1789.0 cm²/m
Nominal size
400
Internal channel cross-section
1640 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 400 Channel type 010 with ductile iron grating 3x SW 118 (133)/18 mm, black, cl. D 400, 1 m
Product description
RECYFIX NC 400 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with ductile iron grating 3x SW 118 (133)/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to EN 1433, LxWxH 1000x500x500 mm, item no. 42421
Packaging unit
4
Declaration of Performance
Tender Texts
Installation example
Asphalt class A 15 - B 125,
Asphalt class C 250 - D 400,
Concrete class C 250 - D 400,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
