Article No. 41422

RECYFIX PLUS 100, class B 125

Type 010 with mesh grating MS 30/10 mm, galvanised, locked, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

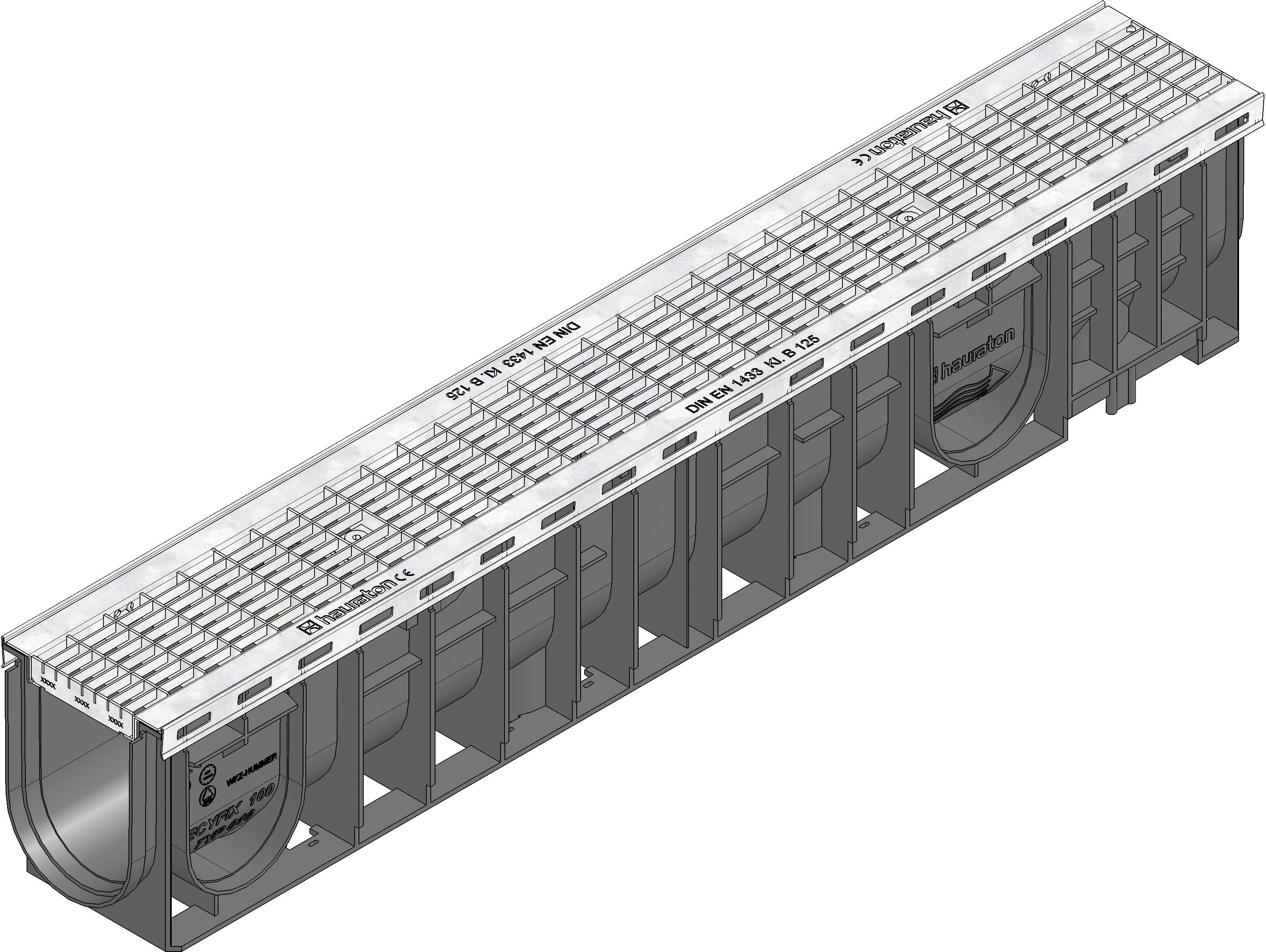

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
41422
Length
1000 mm
Width
147 mm
Height
186 mm
Inlay depth
2 mm
Weight
6.78 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
hot-dip galvanised steel
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX PLUS 100 Channel type 010 with edge frames made of galvanised steel and mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PLUS 100 type 010 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 110, with mesh grating MS 30/10 mm, made of galvanised steel, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x147x186 mm, item no. 41422
Packaging unit
42

Declaration of Performance
Declaration of Performance
Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - B 125, Type 60, Type 80

Installation example

Pavement class A 15 - B 125, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - C 250, channel height ≥ 150 mm

Installation example

Cemented floor class A 15 - C 250,

Installation example

Concrete class C 250, channel height ≥ 150 mm

Installation example

Pavement class C 250, Type 60, Type 80

Installation example

Pavement class C 250, channel height ≥ 150 mm

Installation example

Asphalt class A 15 - B 125, channel height ≥ 134 mm

Installation example

Asphalt class C 250, channel height ≥ 134 mm

Installation example

Pavement class A 15 - B 125, channel height ≥ 134 mm

Installation example

Concrete class C 250, channel height ≥ 134 mm

Installation example

Pavement class C 250, channel height ≥ 134 mm

Installation example

Installation instructions
Installation instructions
