Article No. 40741
RECYFIX PLUS 200, class C 250
Type 100 with GUGI-Ductile iron mesh grating MS 15/25 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

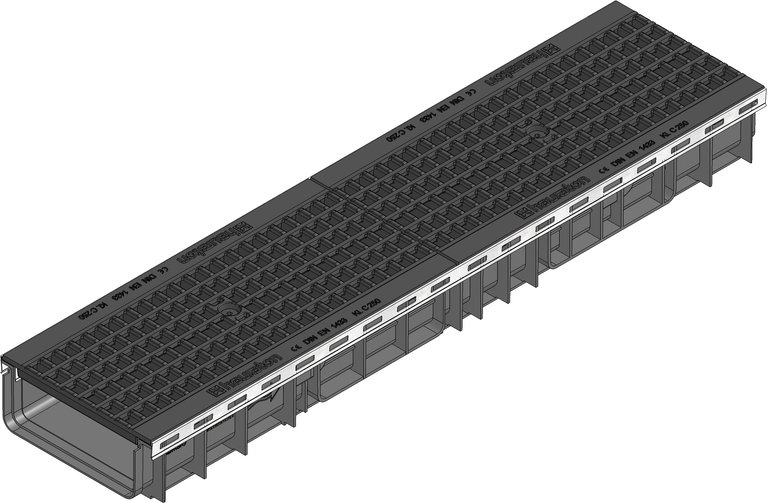

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40741
Length
1000 mm
Width
247 mm
Height
100 mm
Inlay depth
6 mm
Weight
15.09 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
836.0 cm²/m
Nominal size
200
Internal channel cross-section
147 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 200 Channel type 100 with edge frames made of galvanised steel and GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 200 type 100 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with vertical connection possibility DN/OD 75/110, with GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x247x100 mm, item no. 40741
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
