Article No. 41970
RECYFIX PLUS 300, class C 250
Type 01 with GUGI-ductile iron mesh grating, MS 15/25 mm, black, locked, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

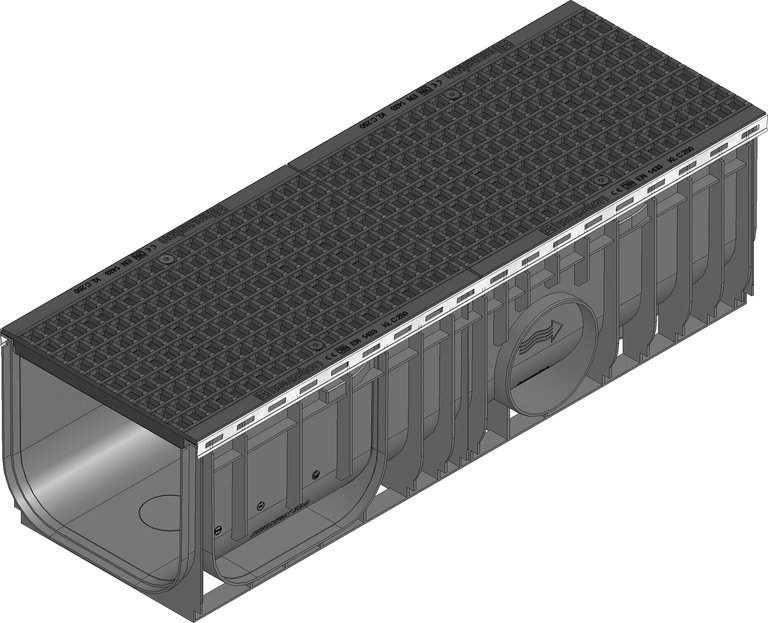

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41970
Length
1000 mm
Width
347 mm
Height
291 mm
Inlay depth
6 mm
Weight
31.30 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1325.0 cm²/m
Nominal size
300
Internal channel cross-section
730 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
strip galvanized steel
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 300 Channel type 01 with edge frames made of galvanised steel and GUGI-ductile iron mesh grating MS 15/25 mm, black, cl . C 250, locked, 1 m
Product description
RECYFIX PLUS 300 type 01 - Channel body made of recycled polypropylene, with edge frames made of galvanised steel, with lateral (DN/ OD 160) and vertical connection possibility (DN/OD 160/200), with GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x347x291 mm, item no. 41970
Packaging unit
9
Declaration of Performance
Tender Texts
Installation instructions
Installation example
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
