Article No. 42275

RECYFIX PLUS X 200, class D 400

Type 010 with GUGI-ductile iron mesh grating, MW 15/25 mm, locked, 1,0 m

Available from stock


Our experienced planning team will be happy to help you.

Get in touch

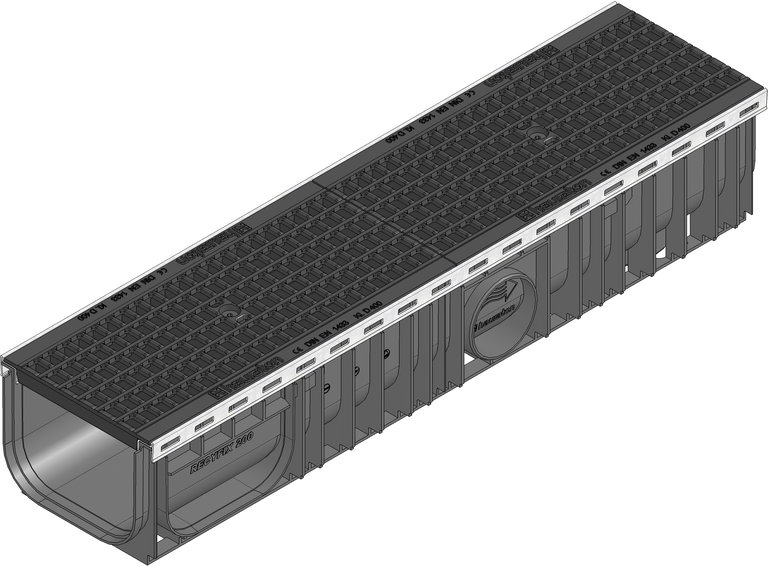

Product image

Technical drawing


Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
1000 mm
249 mm
189 mm
20.90 kg
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
873.0 cm²/m
Nominal size
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
Channel material
recycled, modified Polypropylene
Material of angle housing
strip galvanized steel
Material grating
Ductile iron GJS 500-7
EN 1433, DIN 19580
Sales text
RECYFIX PLUS X 200 channel type 010 with GUGI-ductile iron mesh grating, cl. D 400, locked, 1 m
Product description
RECYFIX PLUS X 200 type 010 - channel made of modified PP, with integrated metal profile for the grating support, with lateral (DN/OD 110) and vertical (DN/OD 110/150) connection possibility, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, MW 15/25 mm, black, with horizontal thrust resistance, loading capacity from A 15 up to D 400 according to EN 1433, L/W/H 1000x249x189 mm, item no. 42275
Packaging unit

Declaration of Performance

Tender Texts

Installation instructions

Installation example

Asphalt class D 400

Concrete class D 400

Pavement class D 400
