Article No. 32248

SLOTTED COVERS 100, neck height 105 mm, class C 250

Asymmetrical SW 12mm, stainless steel, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

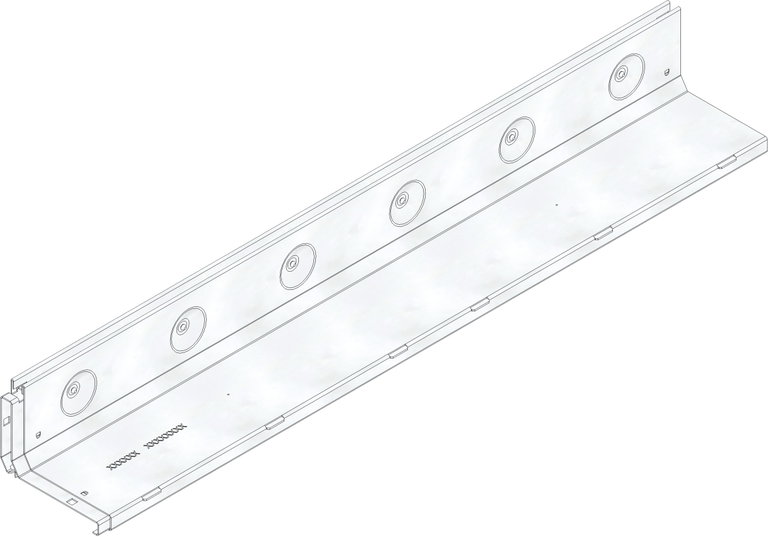

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
32248
Length
1000 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
6.24 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
1000 x 12 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 12 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 12 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, with integrated, full-surface connection element, loading capacity from A 15 - C 250, length 1000 mm, item no. 32248
Packaging unit
80

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15

Pavement class B 125

Pavement class C 250

Pavement class C 250

Asphalt class D 400

Asphalt class D 400

Pavement class D 400

Asphalt class D 400

Concrete class E 600

Pavement class D 400

Installation instructions
