Article No. 33140
SLOTTED COVERS 100, neck height 160 mm, class C 250
Corner element outside corner 90°, asymmetric, SW 12 mm, stainless steel, side length 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

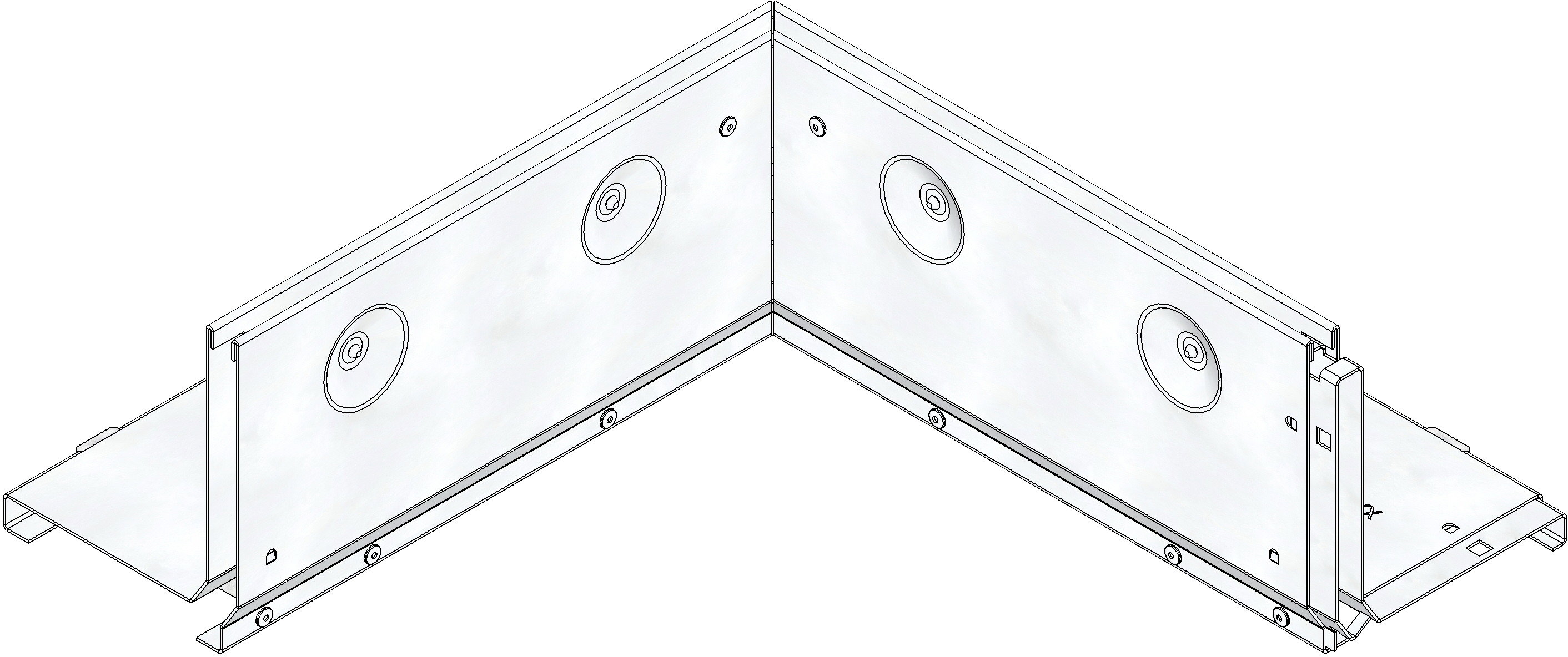

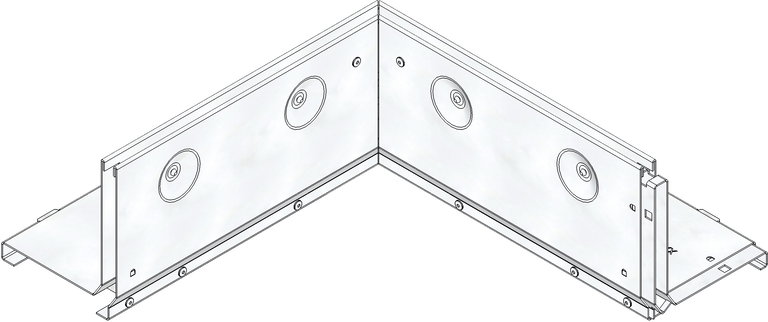

Product image
Technical drawing
Drawing (CAD)

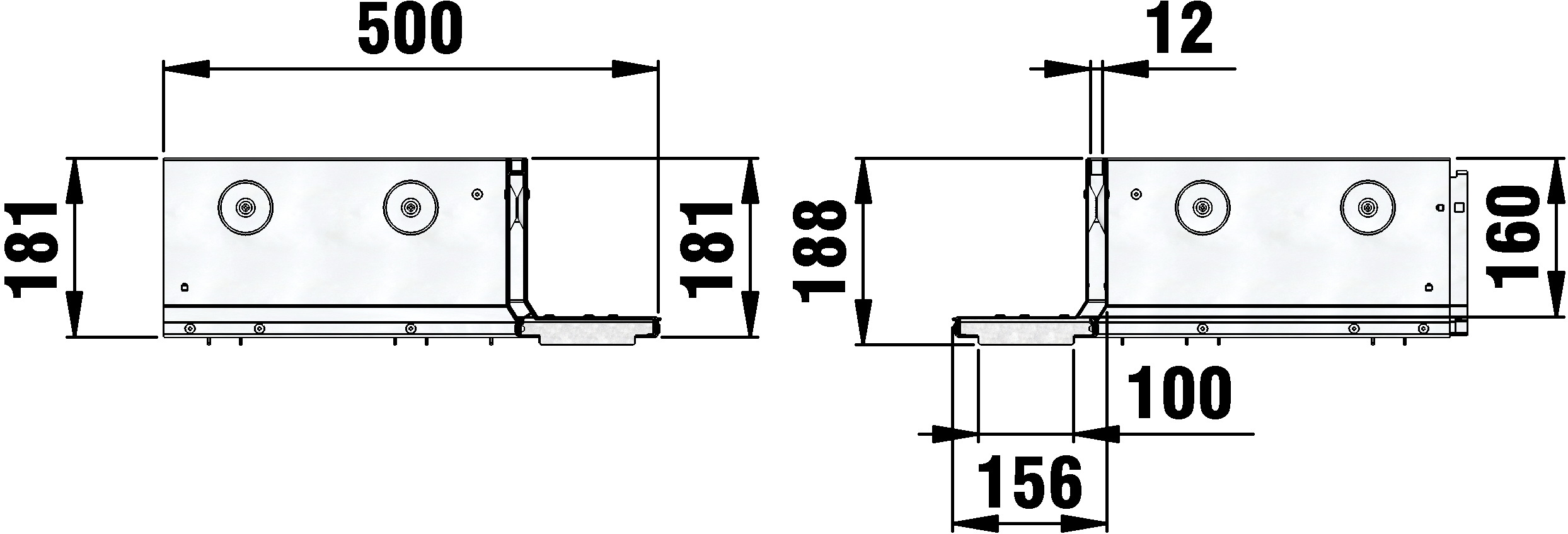

Drawing
Data Sheet
Technical information and metrics
Article No.
33140
Length
500 mm
Width
156 mm
Height
188 mm
Inlay depth
181 mm
Weight
6.50 kg
Material
Stainless steel 1.4301
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 12 mm
Sales text
Slotted cover SW 12 mm, neck height 160 mm, stainless steel, asymmetric, as corner element outside corner 90°, with integrated, full -surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, side length 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 - Slotted cover SW 12 mm, neck height 160 mm, asymmetric, stainless steel CNS 1.4301 , as corner element outside corner 90°, with integrated full-surface connector, load class A 15 - C 250 according to EN 1433, side length 500 mm, item no. 33140
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
