Article No. 33117
SLOTTED COVERS 100, neck height 200 mm, class D 400
Corner element inside corner 90°, asymmetric, SW 14 mm, galvanised, side length 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

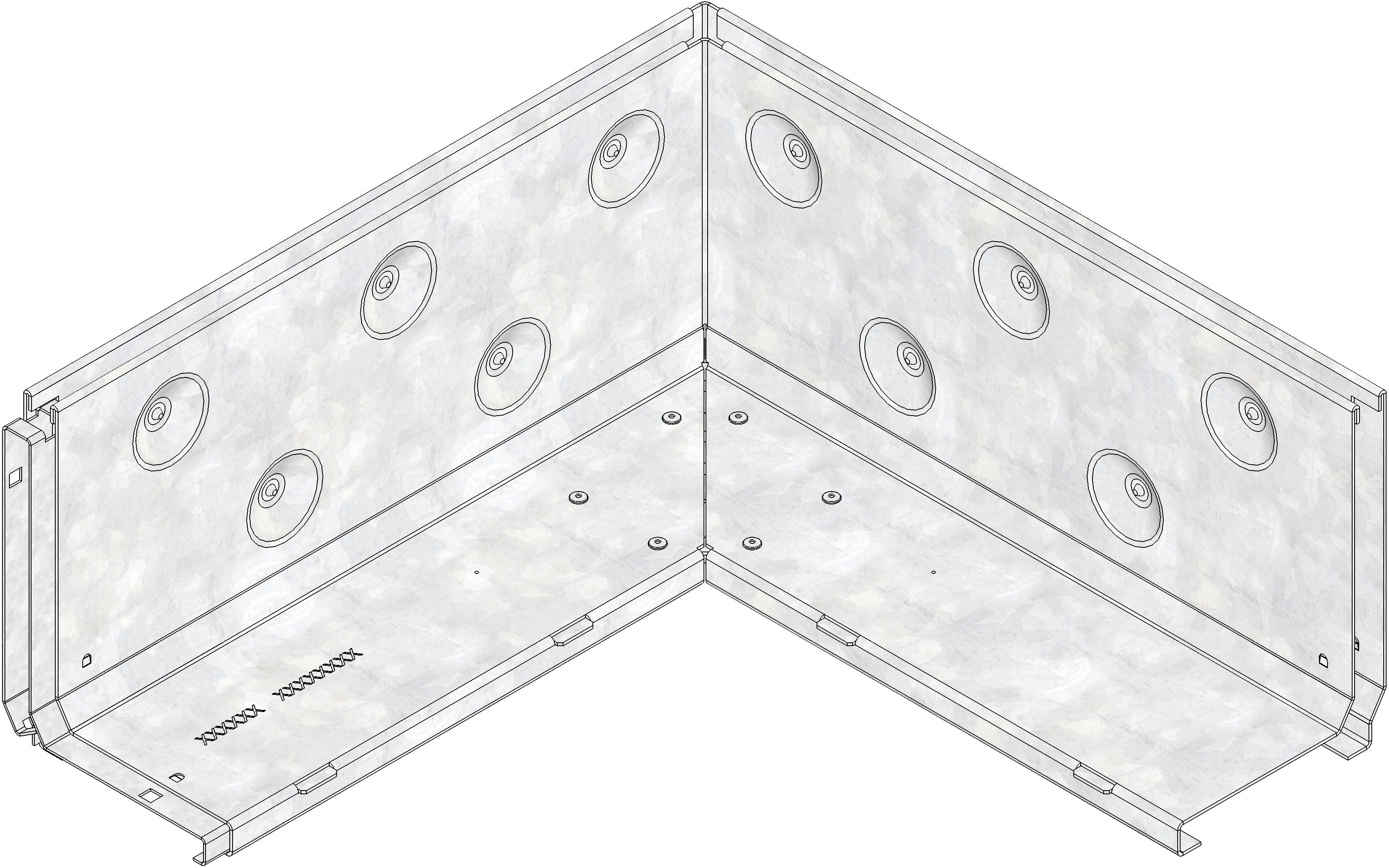

Product image

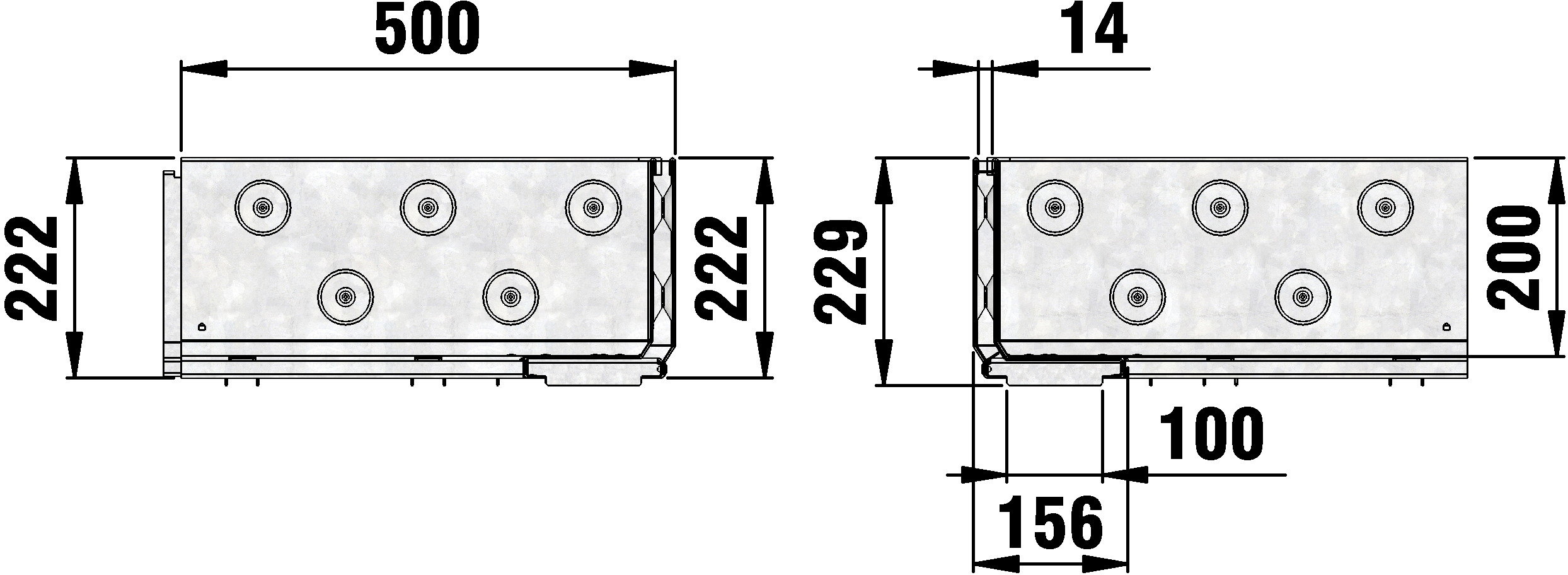

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33117
Length
500 mm
Width
156 mm
Height
229 mm
Inlay depth
222 mm
Weight
10.52 kg
Material
strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 14 mm
Sales text
Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, as corner element inside corner 90°, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, side length 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 - Slotted cover SW 14 mm, neck height 200 mm, asymmetric, galvanised, as corner element inside corner 90°, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, side length 500 mm, item no. 33117
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
