Article No. 32731
SLOTTED COVERS 150, neck height 160 mm, class C 250
Access cover, SW 12 mm, galvanised, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

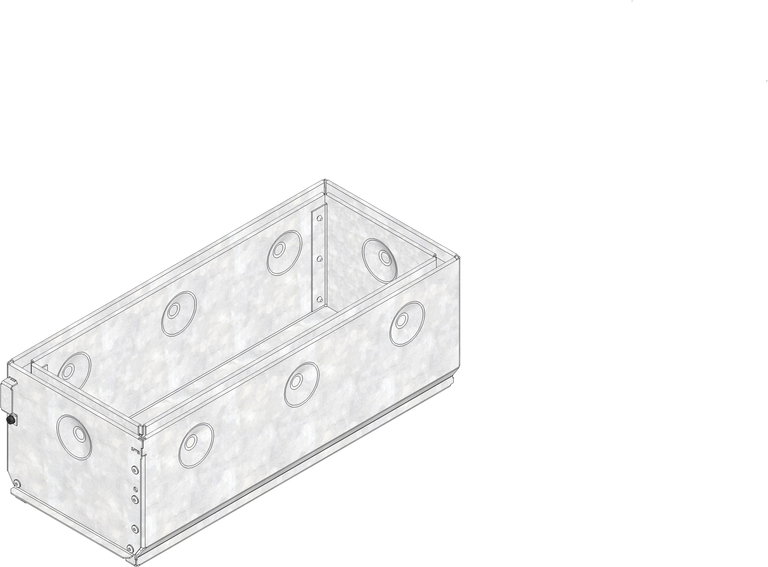

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32731
Length
500 mm
Width
213 mm
Height
181 mm
Inlay depth
181 mm
Weight
7.78 kg
Material
strip galvanized steel
Intake cross-section
322.0 cm²/m
Nominal size
150
Inlet opening
500 x 12 mm
Material grating
strip galvanized steel
Regulations
in accordance with EN 1433
Sales text
Access cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -Access cover for slotted cover SW 12 mm, neck height 160 mm, asymmetric, galvanised , load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 32731
Packaging unit
40
Declaration of Performance
