Article No. 10803
SPORTFIX channels with track boundaries
Type 010, straight, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

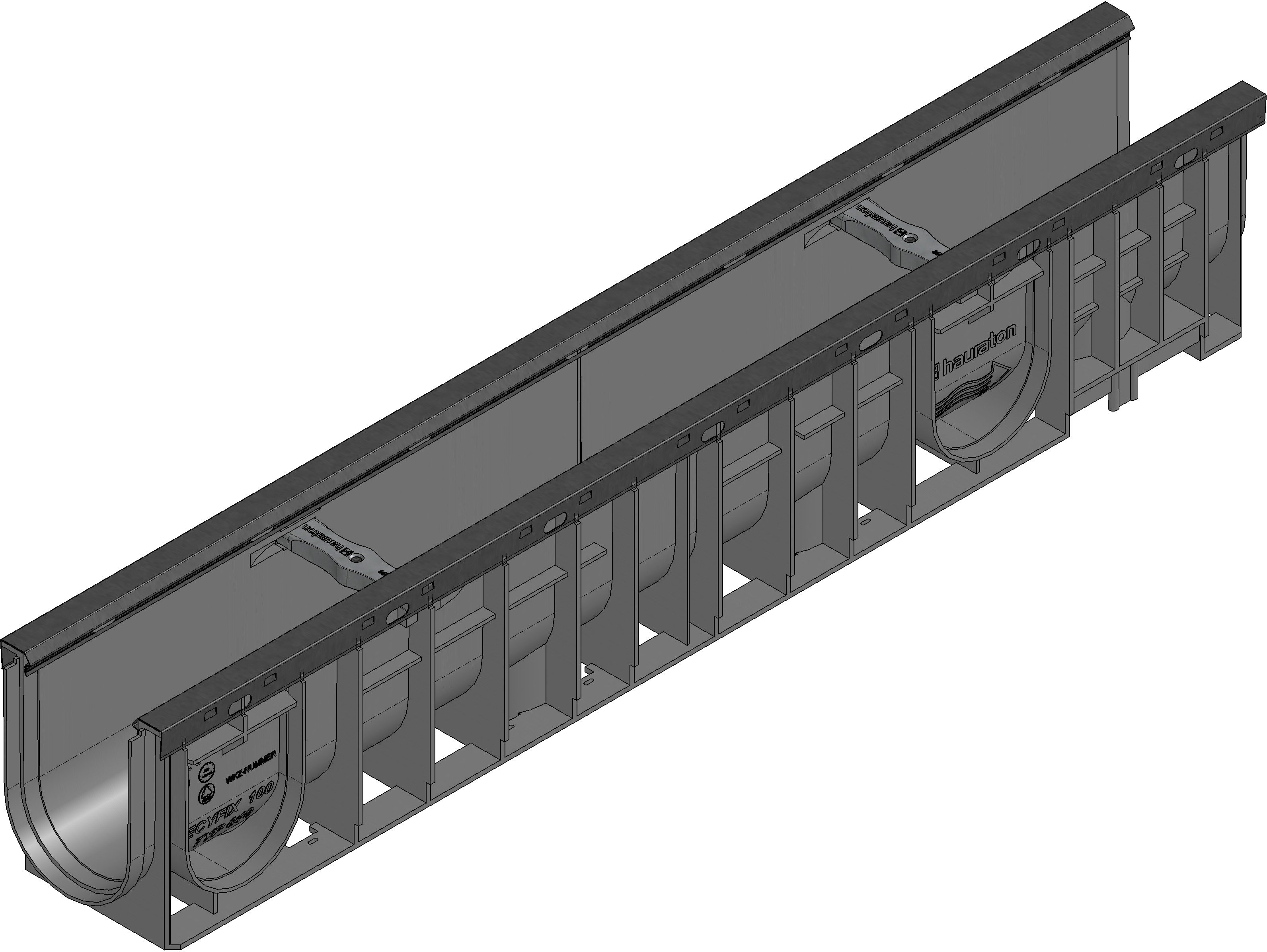

Product image

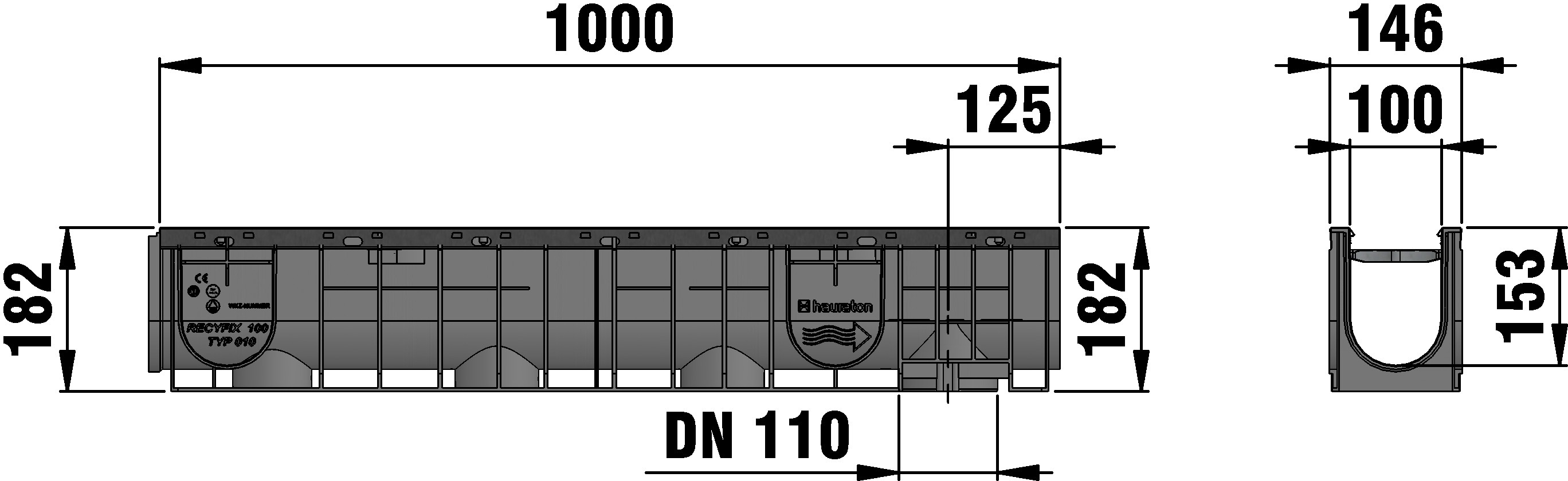

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10803
Width
146 mm
Height beginning
182
Height end
182
Weight
-
Material
KTL coated steel, recycled polypropylene, RECYFIX Material (recycled PA)
Height of angle housing
-
Nominal size
100
Internal channel cross-section
-
Fall
-
Fixing type
Loose blatant
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
angle housing material
KTL coated steel
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX Channel body type 010 with edge frames made of KTL-coated steel, straight, 1 m
Product description
SPORTFIX 100 Typ 010 - Channel body, straight, made of recycled polyethylene, black, with edge frames made of KTL-coated steel, black, for easy installation of running track surface, with vertical connection possibility DN/OD 110, LxWxH 1000x146x182 mm, item no. 10803
Packaging unit
-
Tender Texts
Installation example
running track / playing field class A 15,
