Article No. 7870
SPORTFIX ROME (I) Channels, accessories
Sump unit, with silt bucket, with GUGI-Mesh grating made of PA-GF, MW 15/25 mm, black, for securing of artificial turf, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

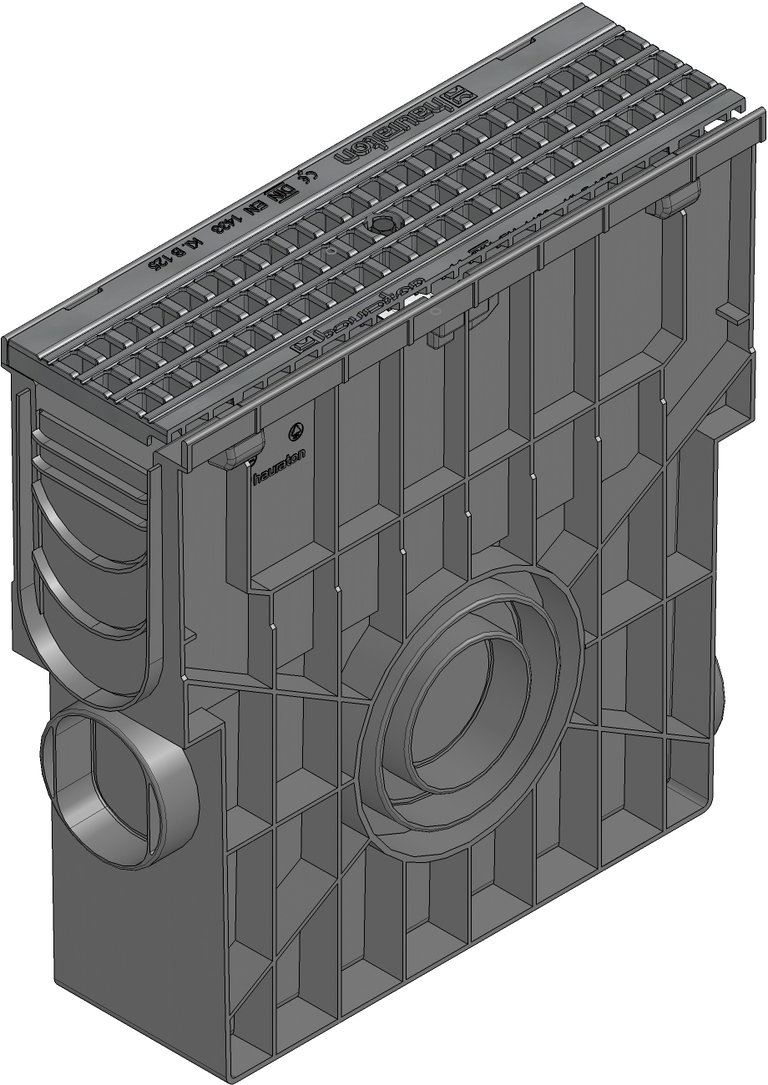

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
7870
Length
500 mm
Width
160 mm
Height
504 mm
Inlay depth
20 mm
Weight
5.40 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Sales text
Sump unit with mesh grating made of fibre-reinforced PA for securing of artificial turf 3 - 15 mm height, with silt bucket, SPORTFIX ROM I, 0.5 m
Product description
SPORTFIX ROM I - Sump unit, made of recycled polypropylene, with removable silk bucket made of recycled polypropylene, with mesh grating made of fibre-reinforced polymide, for securing of artificial turf 3 - 15 mm height, LxWxH 500x160x504 mm, item no. 7870
Packaging unit
28
