Article No. 7740
SPORTFIX Sand traps
Sand trap channel with mesh grating 30/30 mm, galvanised, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

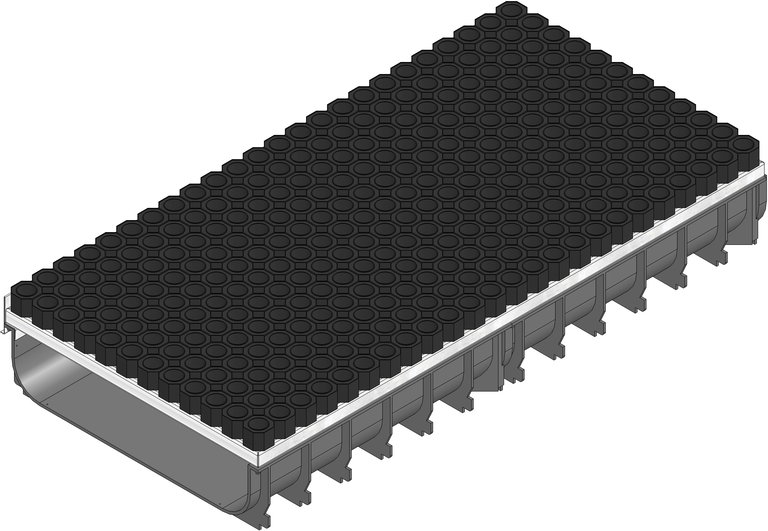

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7740
Length
1000 mm
Width
500 mm
Height
178 mm
Weight
19.81 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Height of angle housing
-
Nominal size
460
Internal channel cross-section
445 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
hot-dip galvanised steel
Regulations
EN 1433
Sales text
SPORTFIX Sand trap channel with mesh grating MS 30/30 mm, galvanised and securely fixed rubber mat, 1 m
Product description
SPORTFIX Sand trap channel, channel body made of recycled polypropylene, black, with preformed connection possibility DN/OD 110, with edge frame made from galvanised steel on one side for track connection, with mesh grating MS 30/30 mm, galvanised, and securely fixed rubber mat, pedestrian-accessible, LxWxH 1000 (2x500)x500x163 mm, item no. 7740
Packaging unit
-
Tender Texts
Installation example
running track / sand pit class A 15,
running track / sand pit class A 15, double-breasted
