Article No. 33000
Trash boxes
for NW 100, for type 80 / 100 and type 01 - 010, with edge frames made of galvanised steel and silt bucket made of recycled PP, with PVC-U socket DN/OD 110, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

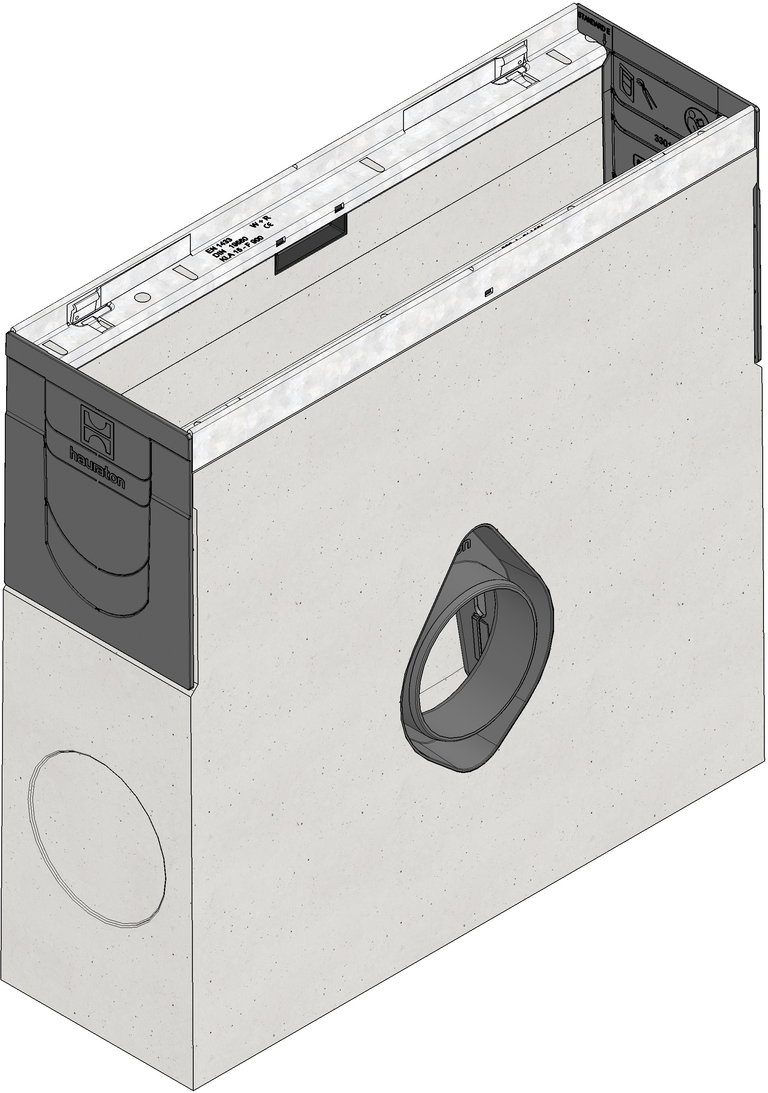

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33000
Length
500 mm
Width
160 mm
Height
503 mm
Weight
48.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
100
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with silt bucket made of recycled PP and two end caps made of recycled PP, for channels type 80/100 as well as for type 01 - 010, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 type 010 - Sump unit made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frames made of galvanised steel and boltless quick-locking system SIDE-LOCK, for quick and easy installation of the grating, 4-fold locking, 3-sided connection possibility DN/OD 110, on the side with integrated PVC-U pipe connection DN/OD 110, with silt bucket made of recycled polypropylene and 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types 80/100 and 01 - 010, easy to assemble on site, LxWxH 500x160x503 mm, item no. 33000
Packaging unit
16
