Article No. 23855
Trash boxes
for NW 200, for type 020, 2-part, with edge frames made of KTL-coated ductile iron and silt bucket made of galvanised steel, with PVC-U socket DN/OD 200, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

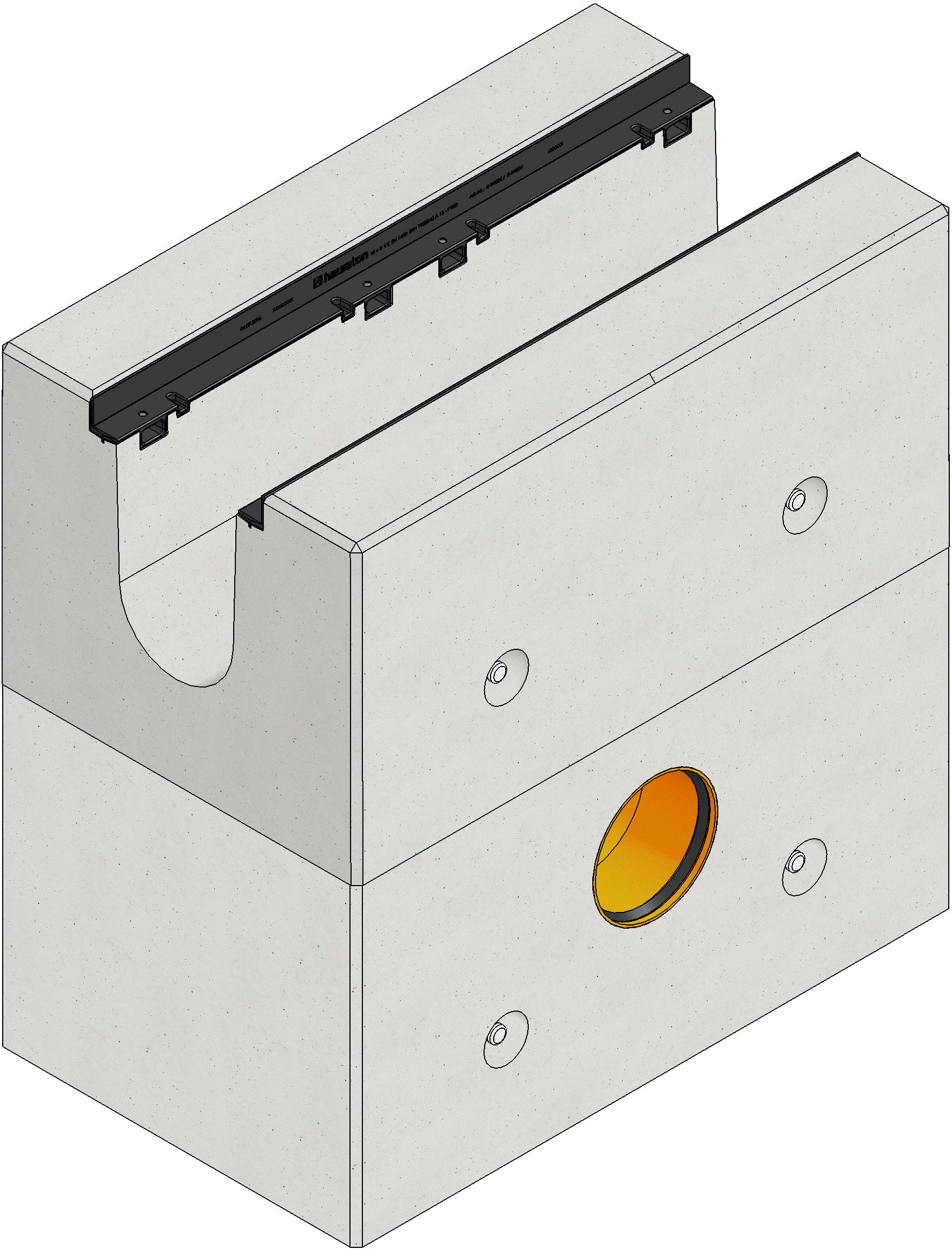

Product image

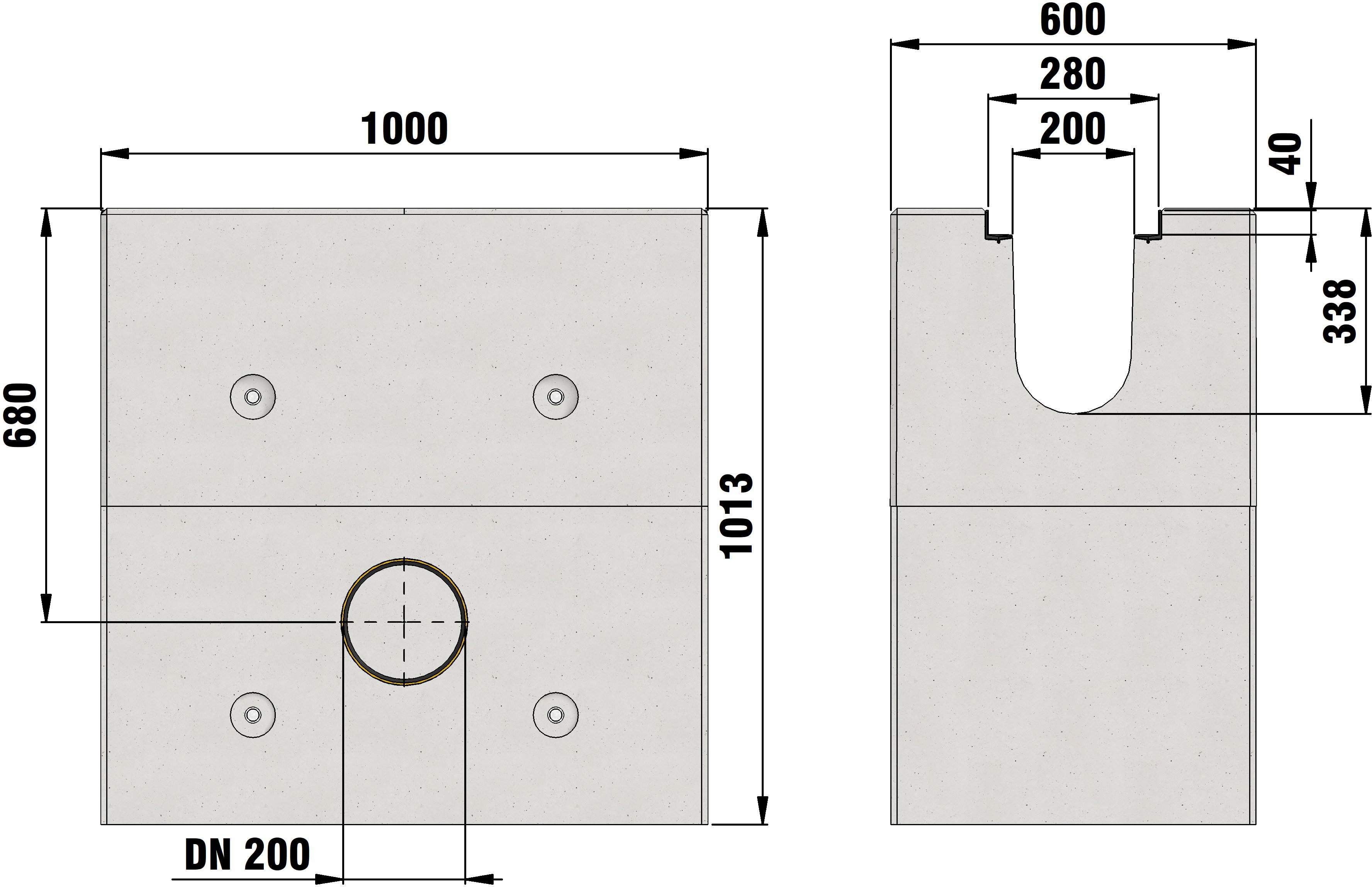

Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
23855
Length
1000 mm
Width
600 mm
Height
1013 mm
Weight
1235.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, High performance concrete
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of KTL-coated ductile iron, with silt bucket made of galvanised steel, with PVC-U socket DN /OD 200, FASERFIX BIG BL 200 type 020, 1 m
Product description
FASERFIX BIG BL 200 type 020 - Sump unit, 2-part, made of steel-reinforced concrete C50/60, with edge frames made of KTL-coated ductile iron, with PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, load class A 15 - F 900 according to EN 1433, LxWxH 1000x600x1013 mm, item no. 23855
Packaging unit
-
