Article No. 2957
Trash boxes
for NW 150, 2-part, with silt bucket made of galvanised steel, with expansion joint insert on both sides, with PVC-U socket DN/OD 160, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

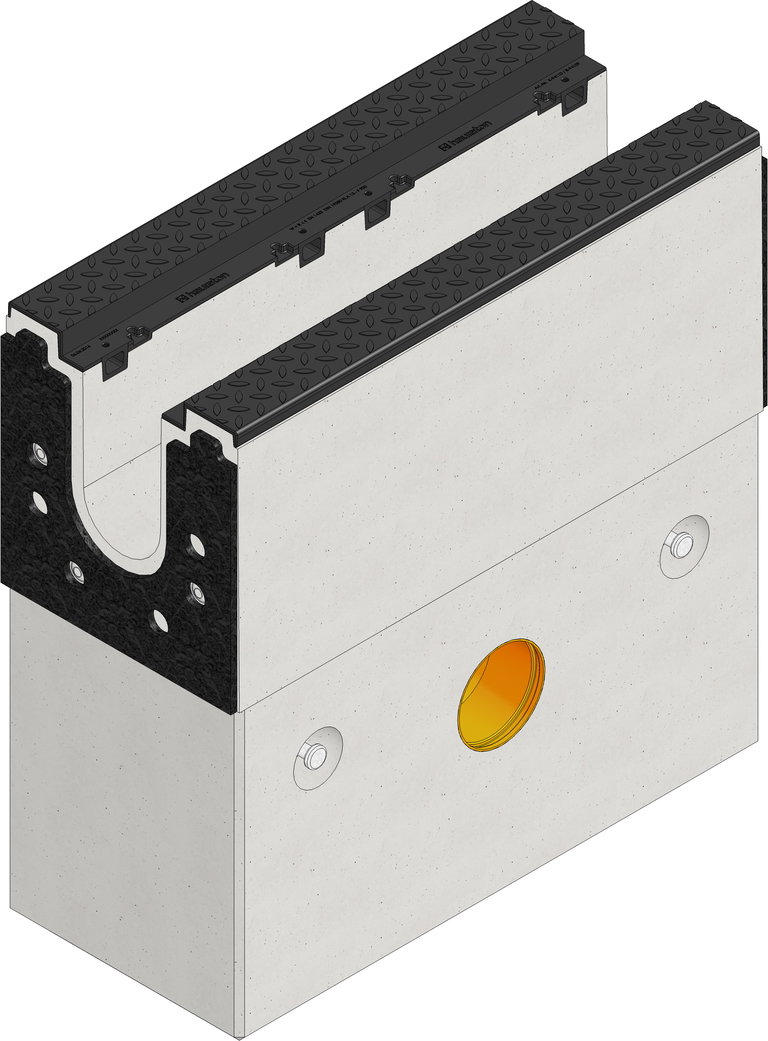

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
2957
Length
1000 mm
Width
438 mm
Height
1010 mm
Weight
904.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
150
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with silt bucket made of galvanised steel, with expansion joint insert on both sides, with PVC-U socket DN/OD 160 , FASERFIX BIG SLG 150, 1 m
Product description
FASERFIX BIG SLG 150 type 020 - Sump unit, 2-part, made of fibre-reinforced concrete, with edge frames (height 40 mm) and also integrated concrete surface protection (5 mm thickness) with ribbed ‘anti-slip’ surface, made of ductile iron EN-GJS-500-07, KTL-coated, 8-fold locking, with sealing groove, with expansion joint insert on both sides, with PVC-U socket DN/OD 160, with removable silt bucket made of galvanised steel, load class A 15 - F 900 according to EN 1433, LxWxH 1000x438x1010 mm, item no. 2957
Packaging unit
1
