Your benefits with FASERFIX KS

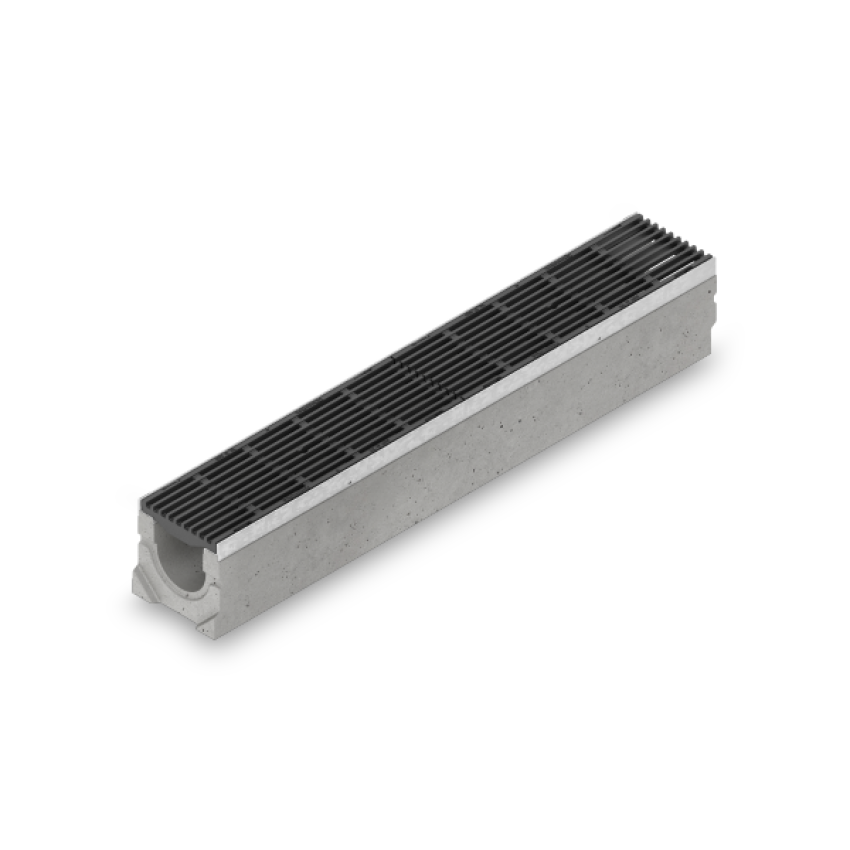

The FASERFIX KS channels manufactured from fibre-reinforced concrete provide superior strength and resistance for public and commercial areas. The systems have a loading capacity from A 15 up to F 900 according to EN 1433. Extra thick sidewalls offer maximum lateral stability and additional security for areas subject to heavy loads. FASERFIX KS systems are available in a variety of nominal widths of 100-300 mm and are compatible with numerous gratings for total design flexibility.

  • Channels made of fibre-reinforced concrete with sustainable basalt fibres
  • 20 mm x 20 mm angle housing made of galvanised or stainless steel
  • Selection of gratings including the award-winning FIBRETEC composite grating and ductile iron METROPOLIS design
  • 90 % time saving due to SIDE-LOCK feature, boltless locking system (compared to conventional fixing)
  • SIDE-LOCK fixing with central bolt & bar fixing for added safety, stability and security
  • Fire resistance class A1 (not flammable) according to DIN 4102
  • Additional protection against longitudinal movements
  • Corrosion-resistant galvanised or stainless steel angle housing

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Discover the variety of channel bases: Use the filters (nominal width, construction height, etc.) to narrow down your selection.

























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.

Show descriptions Hide descriptions

Channels made of fibre reinforced concrete, according DIN V 19580 / EN 1433, CE-conform with safety joint, steel angle housings and boltless locking system SIDE-LOCK with groove and tongue connection for exact installation

numerous grating options, for example GUGI-Ductile iron mesh gratings

Trash box with 3-sided pipe connection possibilities, integrated PVC-U socket DN/OD 110 with removable mud bucket

End caps with outlet

End caps without outlet

System components
FASERFIX KS

SIDE-LOCK: time-saving revolutionary boltless locking system

SIDE-LOCK is a unique and straightforward way of locking gratings into position without bolts or special tools. The grating is aligned and positioned correctly on the channel and locked into place with foot pressure. It is securely locked in place and won’t dislodge when exposed to heavy traffic conditions, longitudinal or transverse movements.

SIDE-LOCK feature can save up to 90% on installation time and provides ease of maintenance. Simple access to the channel is achieved by levering open the grating with a screwdriver near the locking system.

Videos

References with FASERFIX KS

The FASERFIX KS has been used within many public and commercial areas to provide efficient rainwater management.
