RECYFIX MONOTEC

Monolithic drainage channel for areas with frequent traffic.

Your benefits with RECYFIX MONOTEC

The RECYFIX MONOTEC system is manufactured from fibre-reinforced polypropylene (PP) with an integrated FIBRETEC heel-safe composite grating. The monolithic drainage channel is manufactured from two parts using a mirror welding process. The units are exceptionally durable, vandal-proof with impact, chemical and corrosion resistance, providing low-cost maintenance during life-time use.

The load class is rated up to D 400 and the system can withstand high volumes of continual traffic making it ideal for installation within car parks, supermarkets, and retail and commercial areas.

  • Environmentally friendly material: 100% recyclable after lifetime use
  • High hydraulic capacity designed to accommodate heavy rainfall
  • Installed in surfaces with asphalt, concrete or block paving
  • Lightweight and easy to handle on-site
  • Resistance to frost, de-icing salts, UV radiation, corrosion and chemicals
  • Maintenance is quick and easy via inspection box units
  • FIBRETEC grating: hydraulically optimised and aesthetic finish
  • Available in three depths with a nominal internal width of 100 mm and one model in 200 mm

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Grating and channel body merge into a single stable component in the monolithic channel. Filter by nominal width or construction height to narrow down your selection.

























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.


























You are in the category . There are no matching products to your selection here. You may find suitable products for your specific search in another category.

There are no matching products for your selection. Please select other filters in the product finder.

Show descriptions Hide descriptions

End caps for channel start/channel end (DN(OD 110).

Inspection element with removable cover for access to the channel line

RECYFIX MONOTEC channels made of modified polypropylene, according to DIN EN 1433, CE-conform.

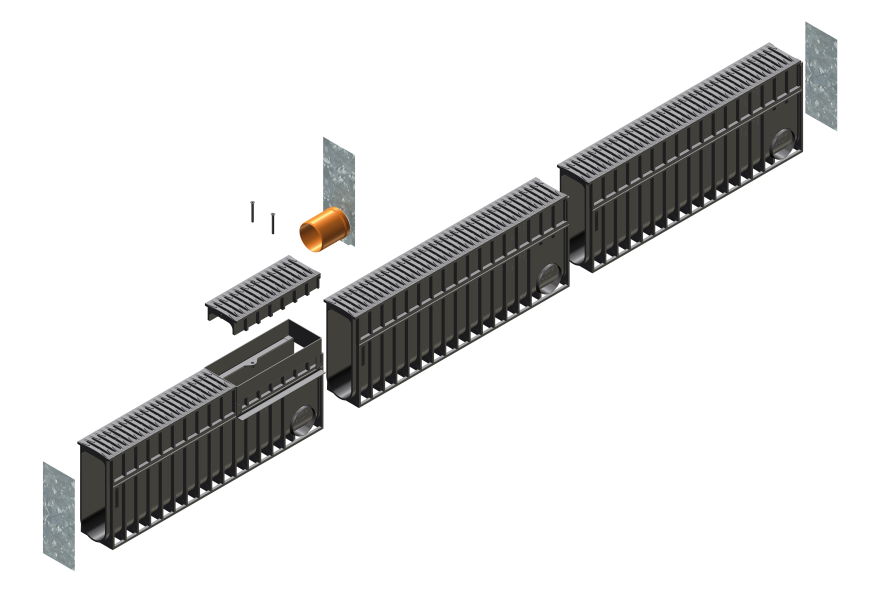

System components
RECYFIX MONOTEC

Optimal drainage performance through slim construction design

Due to the modified fibre-reinforced polypropylene used in the manufacturing of our RECYFIX MONOTEC system, we are able to produce a discrete high capacity channel system that retains a maximum drainage cross-section of 746.1 cm². This means the system has the ability to cope with inflow of heavy rainfall and offers a sufficient backwater reserve to drain large catchment areas safely and reliably.

RECYFIX: sustainable material

The raw material for RECYFIX comes from recycled goods used in everyday life such as packaging, freezer bags and disposable plastic bottles. By utilising these items in the manufacturing process of RECYFIX channels, it protects the environment by reducing waste mountains.

Environmental credentials

RECYFIX channels carry the Blue Angel environmental label, a recognised award in Germany for resource-saving use of materials. The channels are PVC-free and fully recyclable following lifetime use.

Videos

Case Studies with RECYFIX MONOTEC

Take a look to see how RECYFIX MONOTEC has been utilised in drainage projects.
