The importance of robust and durable port drainage channels

Cargo ports play an important role in the transportation of global goods. They are the gateway to vital international trade and have the responsibility of handling over 95 per cent of the UK’s imports and exports.

This type of infrastructure needs efficient surface water drainage systems to prevent operational disturbances when extreme weather conditions occur.



Contact us

Requirements for port drainage systems

Cargo ports and container terminals present the most challenging environments for surface drainage systems. Below are some of the reasons why.

1. Exposure to heavy loads & dynamic forces

RECYFIX HICAP installed at container port

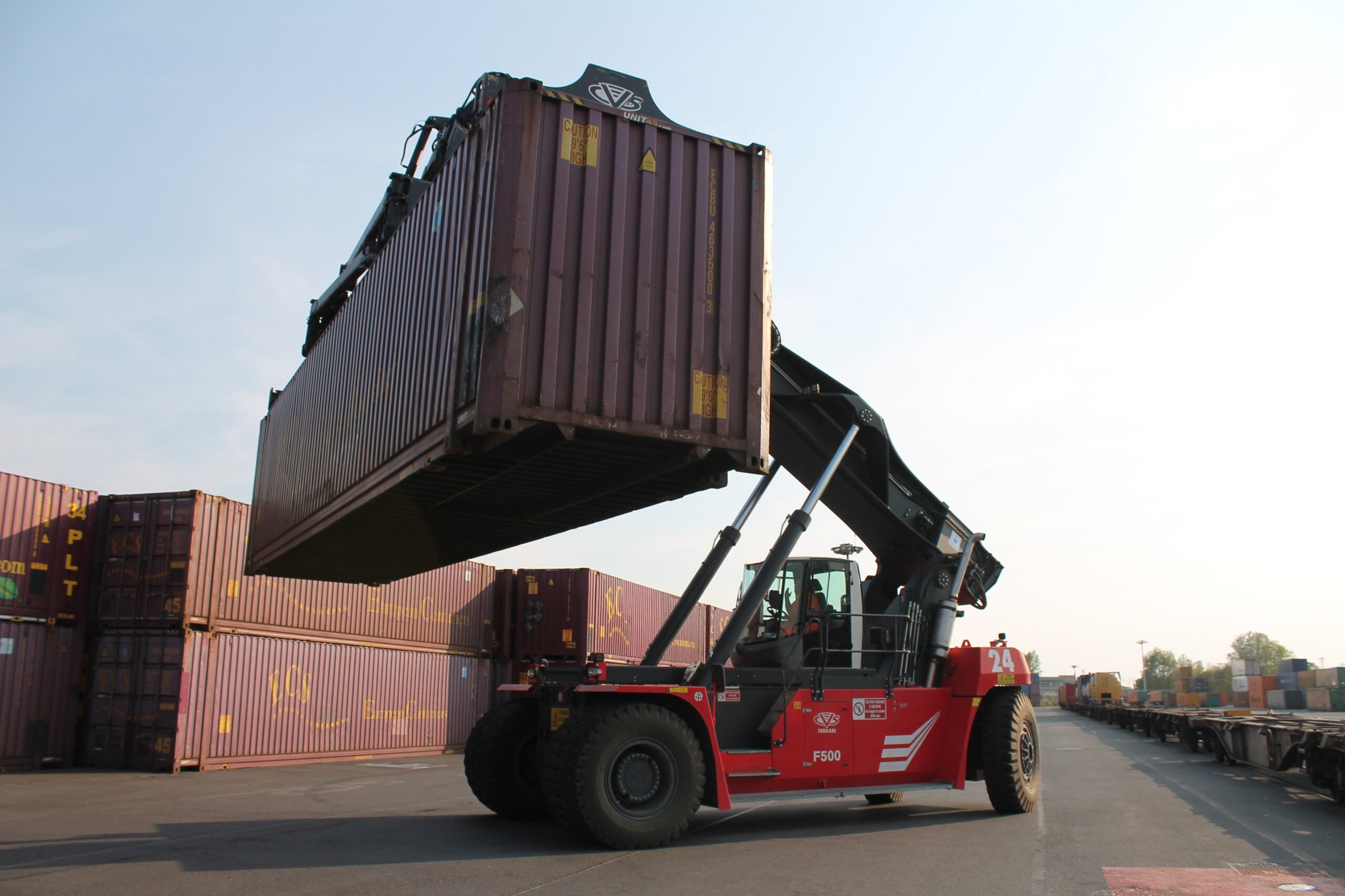

Terminal tractors, forklifts, heavy good vehicles (HGVs) or reach stackers are used to move and transport shipping containers. The most commonly used container for international transportation of ocean freight goods is 40-foot. These alone can have a maximin allowable weight of 29 tons and reach stackers can have a load capacity over 100 tons.

Port drainage systems must have the ability to cope with the operative demands of the surface area. They need to be robust and secure enough to withstand extremely heavy loads and dynamic forces from vehicles turning, braking and accelerating.



    2. Volume of traffic

    RECYFIX HICAP installed at a container port

    At each port or container terminal, the frequency of which drainage channels are exposed to heavy loads and dynamic forces can differ. It is particularly important to take the framework conditions into account as early as the planning phase to ensure the system can cope with the correct wheel point load and frequency.

      3. Contaminated surfaces

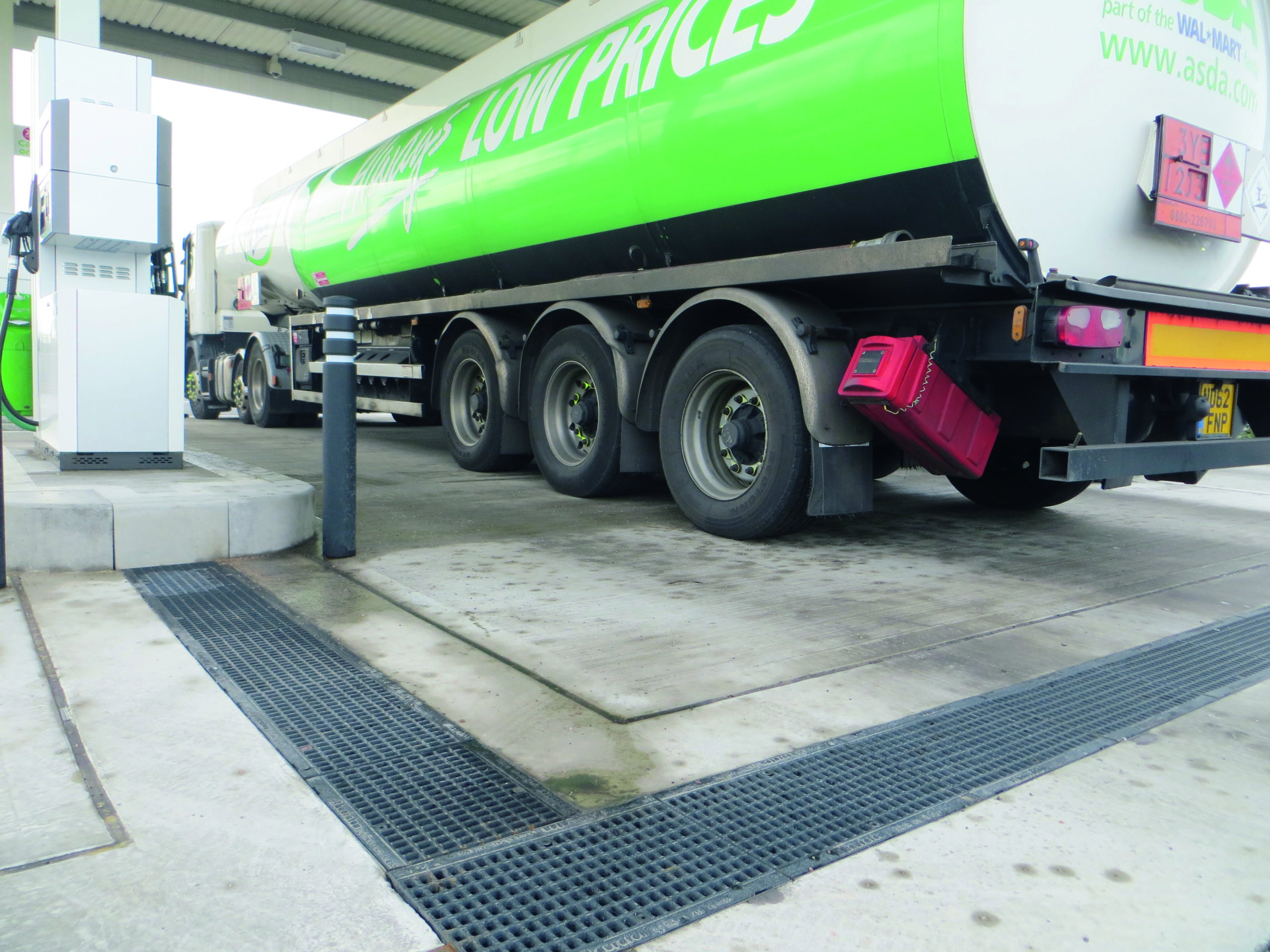

      DRAINFIX CLEAN installed to capture pollutants from contaminated surfaces

      Various chemicals and surface pollutants can occur as a result of everyday port operations. Hydrocarbons (fuel, oils etc), heavy metals (e.g. brake dust), plastic or rubber particles and even hazardous substances can deposit on the surface.

      These pollutants can pose a significant threat to the local environment as they can seep into coastal waters or drain into natural watercourses or sewer networks.

      HAURATON provide efficient surface water treatment with DRAINFIX CLEAN that assists with cleansing surface water run-off from heavy-duty operational areas.

        4. Corrosive environments

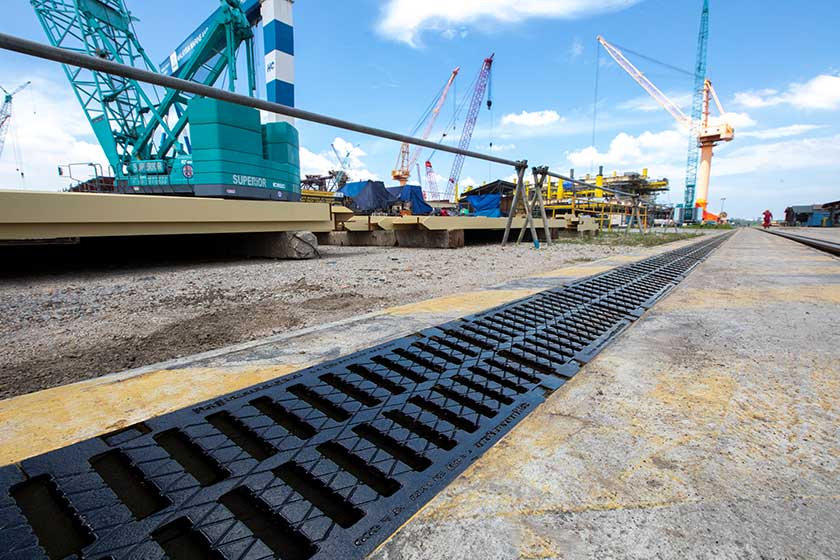

        RECYFIX NC installed at malaysia kuanta johor

        Channel drainage installed in cargo ports can often be exposed to a range of corrosive elements such as saline conditions, ground sulphates, high humidity, extreme temperatures, strong UV radiation, sand abrasion, hydrocarbon fuels, loose raw materials and much more.

        Drainage systems for ports and container terminals must have solutions that are designed with materials with a high level of resistance to corrosives.

          5. Extensive surfaces

          Get in touch
          RECYFIX HICAP installed in Southampton container port

          Read about our drainage solution for Southampton Port

          Drainage solutions for ports and container terminals

          HAURATON have supplied surface drainage systems to over 100 major ports, container terminals and harbours around the world. Understanding the certain requirements drainage has to withstand, makes HAURATON’s port drainage systems known for their reliability and overall performance.

          Included below are three separate drainage systems that meet the challenges of drainage for ports and container terminals.

          Product presentation RECYFIX HICAP F
          Product illustration of a FASERFIX SUPER drainage system
          Presentation of DRAINFIX CLEAN
          RECYFIX HICAP F
          FASERFIX SUPER
          DRAINFIX CLEAN
          High capacity slot drainage channel for areas with extreme loads & dynamics.
          Channel drainage for extreme loads and dynamic forces.
          Treatment of polluted surface water.
          Load class according to EN 1433
          Load class according to EN 1433
          up to F 900
          up to F 900
          up to F 900
          Load frequency
          Load frequency
          Load dynamics
          Load dynamics
          Nominal width | System size
          Nominal width | System size
          1000, 2000, 3000, 5000, 8000, 10000
          100, 150, 200, 300, 400, 500
          200 – 500
          Materials of the lower parts
          Materials of the lower parts
          Modified polypropylene (PP), 100 % recycled composite
          Fibre-reinforced concrete
          Fiber reinforced concrete or polypropylene (PP)
          Angle housing
          Angle housing

          Galvanised steel or ductile iron edge rail with 40 x 40 mm insertion depth

          Depending on the version with FASERFIX or RECYFIX:
          Galvanised steel or cast iron frame with 40 x 40 mm insertion depth

          Cover variants
          Cover variants

          Ductile iron slotted top

          – Ductile iron gratings
          – GUGI ductile iron gratings

          Ductile iron grating

          Special characteristics
          Special characteristics

          – Radial installations possible
          – Large channels for retention
          – Channel run without slotted top achievable, for example, under planted areas
          – Cable installations can be threaded though throat voids of the channel

          – SIDE-LOCK, boltless locking system
          – 16 fixing points for grating/metre

          – Rainwater treatment by surface filtration
          – DIBt approval
          – Proprietary treatment system: CIRIA SuDS Manual C753 chapter 14

          Gradient
          Gradient

          – Constant depth
          – Stepped fall

          – Constant depth
          – Built-in fall
          – Stepped fall

          RECYFIX HICAP installed in Sunderland Port
          RECYFIX HICAP installed within a industrial port

          Port drainage solutions for harbours, quays and passenger terminals

          FASERFIX KS installed within passenger boarding for cruise ship

          HAURATON provide a wide range of linear drainage systems suitable for coastal and waterside areas accessed by the general public, such as marinas, harbours and maritime passenger terminals serving cruise ships and ferries.

          These areas require surface drainage systems with the following characteristics:

          • Strong, safe and practical system design for public areas subject to heavy pedestrian use

          • High level of corrosion resistance for long-term durability in environments with harsh conditions

          • Decorative or discreet features to complement or enhance the aesthetic design

          • Drainage, filtering and treatment of surface water pollutants to assist with the protection of the marine environment

          Our team of experts will be happy to advise what is the most suitable solution for your project. Get in touch to discuss your requirements.

          FASERFIX SUPER installed at Marina of Gdynia
