DRAINFIX CLEAN FSU

The ideal solution for rainwater treatment in heavily built-up and trafficked areas.

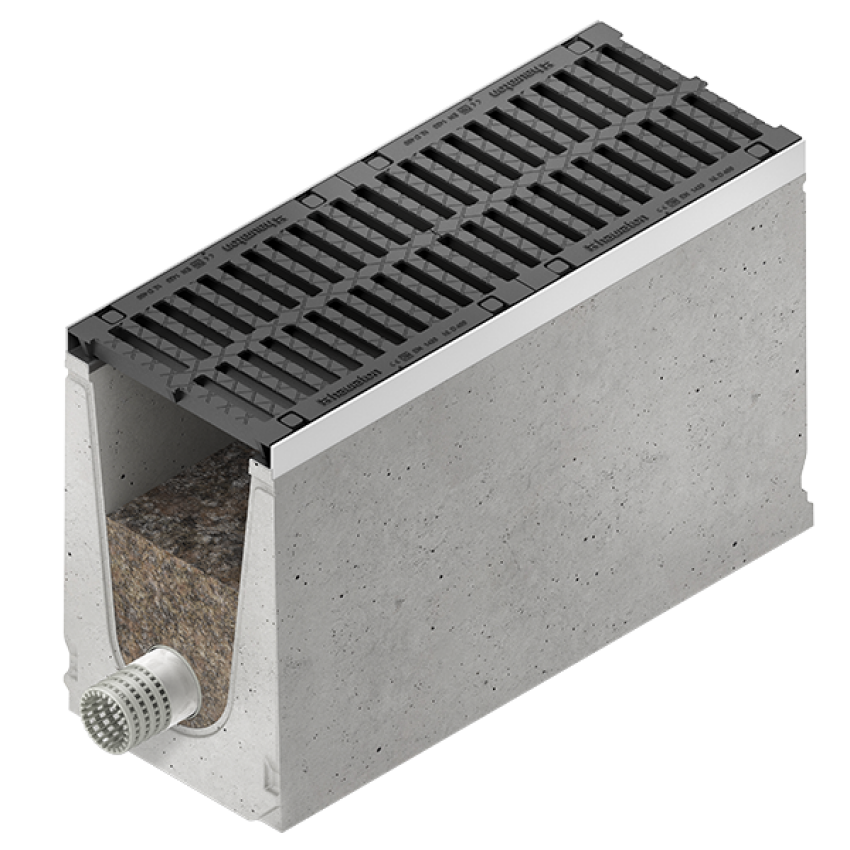

Product visualisation DRAINFIX CLEAN FSU

Your benefits with DRAINFIX CLEAN FSU

DRAINFIX CLEAN FSU is the combination of FASERFIX SUPER and the CARBOTEC 100 filter substrate. With load classes up to F 900, it is the ideal solution for rainwater treatment in heavily built-up and trafficked areas.

  • With DIBt approval Z-84.2-7 and plannable in accordance with the requirements of DWA-A 138/DWA-A 102/DWA-M 153 for maximum planning and operational reliability
  • CARBOTEC 100 filter substrate is characterised by the principle of surface filtration, a high carbonate content, good binding of dissolved heavy metals and retention of ultra-fine particles (0.006 to 0.060 mm)
  • Consistently withstands the effects of weathering and is resistant to frost and de-icing salt
  • Stable edge frame systems: galvanised steel or ductile iron edge frame
  • Unique SIDE-LOCK locking system secures the grating against longitudinal and transverse displacement
  • Permanently withstands the effects of weather and is resistant to frost and de-icing salt
  • Large selection of channel bodies in nominal widths 300 to 500

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Unfold all groups

  • DRAINFIX CLEAN FSU 300 filter substrate channel up to class F 900 with ductile iron angle housing

    • DRAINFIX CLEAN FSU 300 filter substrate channel up to class F 900 with galvanised angle housing

      • DRAINFIX CLEAN FSU 300 filter substrate channel up to class F 900 with galvanised angle housing, for partial flow treatment

        • DRAINFIX CLEAN FSU 400 filter substrate channel up to class F 900 with ductile iron angle housing

          • DRAINFIX CLEAN FSU 400 filter substrate channel up to class F 900 with galvanised angle housing

            • DRAINFIX CLEAN FSU 400 filter substrate channel up to class F 900 with galvanised angle housing, for partial flow treatment

              • DRAINFIX CLEAN FSU 500 filter substrate channel up to class F 900 with ductile iron angle housing

                • DRAINFIX CLEAN FSU 500 filter substrate channel up to class F 900 with galvanised angle housing

                  Unfold all groups
                  deconstructed product image highlighting the most important parts of the product
                  Show descriptions Hide descriptions

                  End cap

                  Start element

                  Centre element

                  ending element

                  Various cover options

                  Partition wall

                  System components
                  DRAINFIX CLEAN FSU
