DRAINFIX CLEAN RNC BASIC
Ideal for rainwater treatment for medium loads up to load class D 400.
Your benefits with DRAINFIX CLEAN RNC

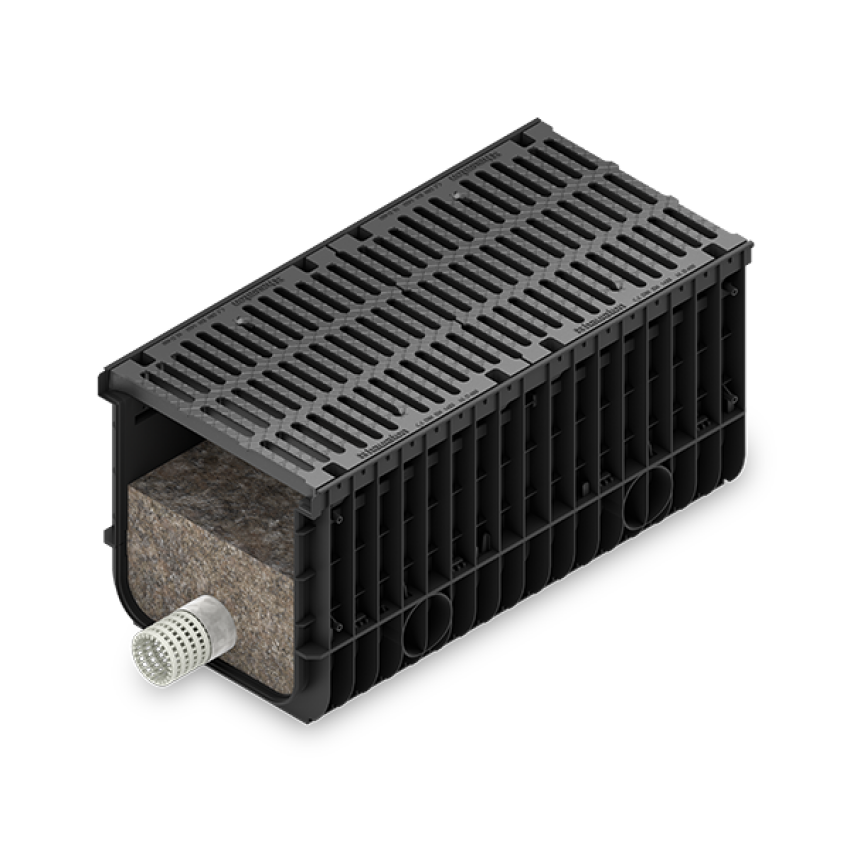

DRAINFIX CLEAN RNC is the combination of RECYFIX NC and the CARBOTEC 100 filter substrate. The channel is suitable for rainwater treatment for medium loads up to load class D 400. The RECYFIX channel material consists of approximately 93% recycled polypropylene and has been awarded the German ‘Blue Angel’ eco-label.
-
With DIBt approval Z-84.2-7 and can be planned in accordance with the requirements of DWA-A 138/DWA-A 102/DWA-M 153 for maximum planning and operational safety
-
CARBOTEC 100 filter substrate is characterised by the principle of surface filtration, a high carbonate content, good binding of dissolved heavy metals and retention of ultra-fine particles (0.006 to 0.060 mm)
-
Low weight of the channel saves time and costs during installation
-
Adjustments to the channel, such as drilling or cutting, can be easily carried out on site
-
Use of self-centering screws enables the system to be assembled quickly and securely
-
Composite edge frame already integrated into the channel body provides protection against longitudinal thrust
The HAURATON Product Finder
Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Show descriptions
Hide descriptions
End cap
Start element
Centre element
Various cover options
ending element
