Article No. 32033
SERVICE CHANNELS FASERFIX KS 200 made of fibre-reinforced concrete with 20 mm angle housing, class C 250
Ductile iron grating, closed, KTL-coated, black, 0.5 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

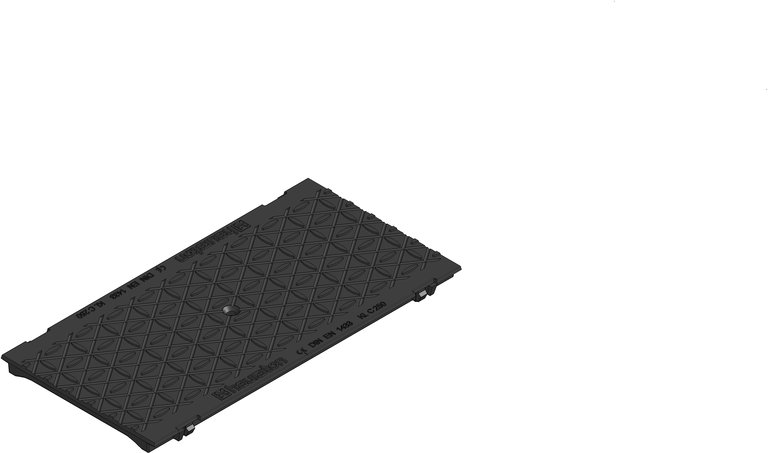

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32033
Length
500 mm
Width
249 mm
Height
26 mm
Inlay depth
20 mm
Weight
7.35 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, black, cl. C 250, MEDIA CHANNEL FASERFIX KS 200, 0.5 m
Product description
MEDIA CHANNEL FASERFIX KS 200 - Ductile iron grating closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 32033
Packaging unit
108
Declaration of Performance
